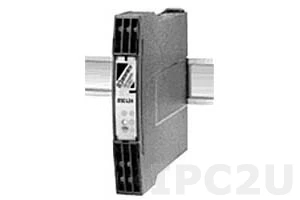

DSCL24-02

DSCL24-02

SKU: 01485100
Jumper Configurable Isolator, 1 Channel, 85...230 V DC/AC Power Supply, input 4...20 mA, output 4...20 mA
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Total channels of analog input
1
Current range
4...20 mA
Voltage range
+/-10 V, 0...10 V
Analog Output
Channels of analog input
1
Current range
4...20 mA
Voltage range
0...10 V, +/-10 V
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
85..230 V
Dimensions and weight
Width
18 mm
Depth
147 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..55 °C
Standards and Certifications
Certifications
CE, EN 50081-2, EN 50082-2
Safety
UL
Dimensions
Net Weight
0.1 kg
Gross Weight
0.2 kg
