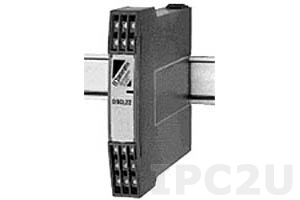

DSCL22-11

DSCL22-11

SKU: 01478900
Loop Powerd Isolator, 2 Channels, Input 0...20 (4...20) mA, Output 0...20 (4...20) mA, 2 Channels
End-of-life product
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
Analog Input
Total channels of analog input
2
Current range
0...20 mA, 4...20 mA
Analog Output
Channels of analog input
2
Current range
0...20 mA, 4...20 mA
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
18 mm
Depth
147 mm
Height
120 mm
Operating Conditions
Operating Temperature
-20..65 °C
Standards and Certifications
Certifications
CE, EN 50081-2, EN 50082-2
Safety
UL
Dimensions
Net Weight
0.1 kg
Gross Weight
0.2 kg
