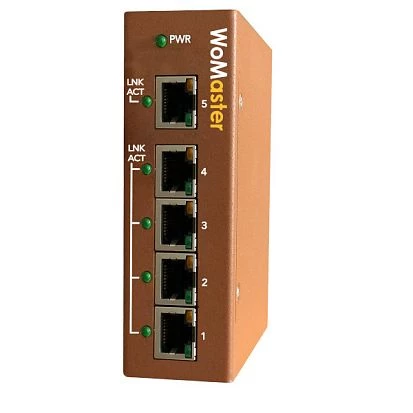

DS105A

DS105A

WoMaster
SKU: 57610500
Industrial Ethernet Switch, 5x10/100Base-TX, 10..60VDC, -40..75 C Operating Temperature
Price on request
Available
Available

Ethernet
10/100 Mbit/s
5
Switch Properties
MAC Table Size
1000
Packet Buffer Size
448 kBit
Supported Protocols
IEEE Standard
IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.3 for 10BaseT, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP30
Dimensions and weight
Width
32 mm
Depth
82 mm
Height
103 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 22 Class
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4
Dimensions
Net Weight
0.31 kg
Gross Weight
0.41 kg
