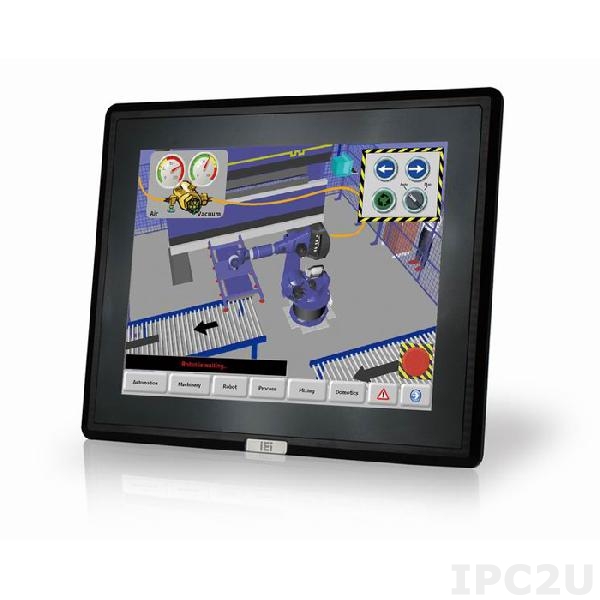

DM-F15A/PC-R11
IEI
SKU: 06646600
Industrial 15" LCD Monitor, Aluminium Front Panel, IP65 Front Protection, 1024x768 XGA, Brightness 400cd/m2, Projected capacitive Multi-Touch Screen, 1xVGA, 1xDP, 1xHDMI, 1xUSB 2.0, 1xRS-232, 9-36V DC-In
End-of-life product
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop, Panel, 19" Rackmount, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD
Diagonal
15 "
Maximum resolution
1024x768 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
700~1
Touch Screen
Touch Screen Type
Capacitive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, KeyPad
Connectors
Connectors
DB15 VGA, HDMI, 1xUSB, DC Input, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-20..60 °C
Dimensions and weight
Width
303 mm
Height
378.5 mm
Depth
43.2 mm
Standards and Certifications
Certifications
CE, FCC
Dimensions
Net Weight
3.5 kg
Gross Weight
6.04 kg
