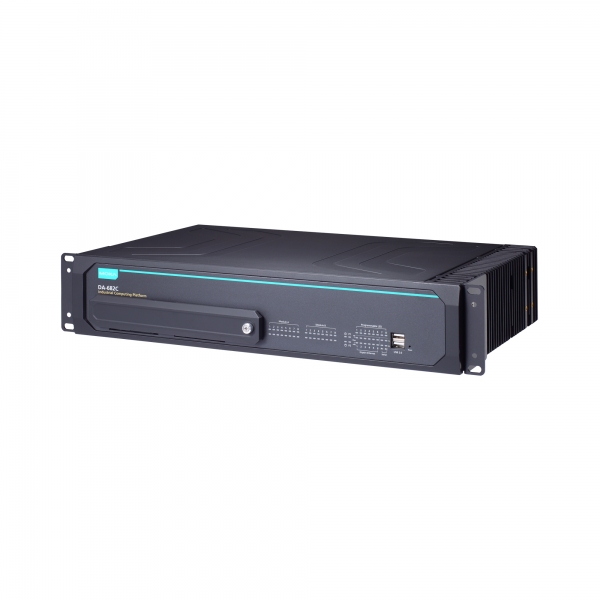

DA-682C-KL5-HH-T
MOXA
SKU: 08614000
Fanless Embedded Server with x86 2U Intel Core i5-7300U 2.6GHz, dual power 100...240 VAC/VDC, -40...70C, w/o RAM/SSD/OS
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
19" Rackmount
Height
2 U
Type
Fanless
CPU
Processor Installed
Intel Core i5-7300U
Max CPU frequency
3.5 GHz
Memory
Form-factor
DDR4
Socket Type
2xSODIMM
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Total Ethernet
6
10/100/1000 Mbit/s
6
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
5
USB 2.0
2
USB v3.x
3
Storage Cage
Number Of Cage External
2
Cage Door
Yes
2.5" Cage External
2
Connectors
Connectors
2xHDMI, PS/2 Mouse, PS/2 Keyboard, 6xRJ45 Ethernet, 5xUSB, DC Input, AC Input
System Power Input
Input Voltage AC
100..240 V
Input Voltage DC
100..240 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
482 mm
Height
88 mm
Depth
282 mm
Operating Conditions
Operating Temperature
-40..70 °C
Shock
IEC 60068-2-27, IEC 60870-2-2, IEC 61850-3 Edition 1.0
Standards and Certifications
EMI
EN 61000-6-4, FCC Part 15 Subpart B Class A, CISPR 32
Power Automation
IEC 61850-3, IEEE 1613, IEC 60255
Dimensions
Net Weight
7 kg
Gross Weight
8 kg
