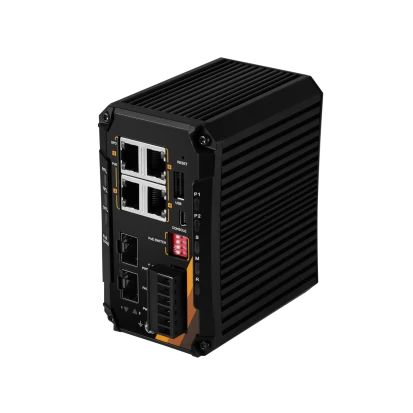

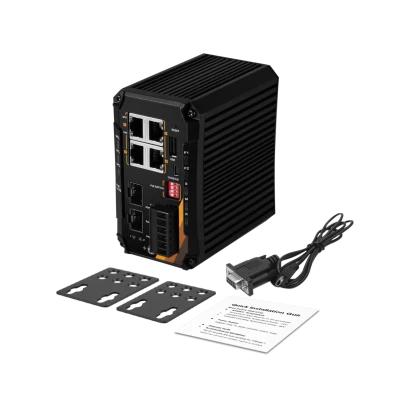

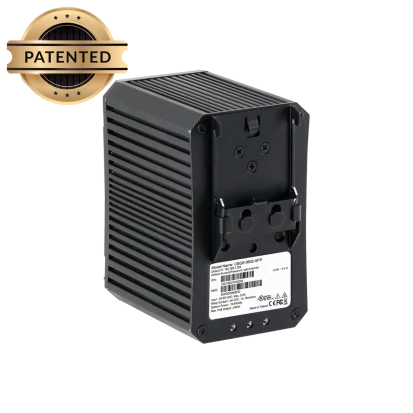

CBG5-0602-SFP-T
Leonton
SKU: 80096700
Industrial Compact Managed Ethernet PoE Switch, IP40, 4x10/100/1000Base-TX with PoE, 2x100/1000Base-FX SFP, 1xUSB, Dual 48..55VDC, Operating Temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
SFP 100/1000 Mbit Ports
2
PoE 10/100/1000 Mbit/s
4
Switch Properties
MAC Table Size
8000
Jumbo Frame Size
9.6 kB
Supported Protocols
Managment Protocols
SNMPv1/v2c/v3, HTTP, LLDP, Telnet, DNS, QoS, DHCP, NTP, GVRP, RMON, TFTP, LACP, IGMP Snooping v1/v2/v3, GARP
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
48..55 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP40
Dimensions and weight
Width
64.9 mm
Depth
110 mm
Height
89.8 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
MTBF
530230 h
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
