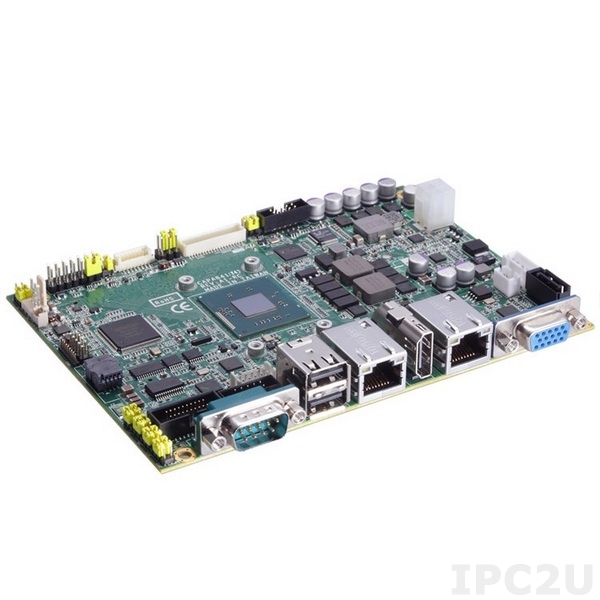

3.5" Embedded CPU Card with Intel Celeron N2807 1.580GHz, DDR3L SO-DIMM, VGA/LVDS/HDMI, 2xLAN, 4xCOM, 4xUSB, 1xSIM slot, Audio, 2x mini-PCIe
CAPA842VHGGA-N2807
AXIOMTEK
SKU: 06677000
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
Construction
Type
Fanless
CPU
СPU Generation/Family
Bay Trail
Processor Installed
Intel Celeron N2807
Max CPU frequency
2.16 GHz
Chipset
Chipset
Intel Bay Trail-I SoC
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
ECC
No
Maximum Memory
8 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
LVDS, HDMI, VGA
Ethernet
Controller Type
Intel i210AT 10/100/1000 Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232
2
RS-232/422/485
2
USB Total
4
USB 2.0
4
Digital Input-Output
Channels of DIO
8
Audio
Audio Controller
Intel HD Audio
Drive interfaces
CFast Slots
1
Extension Slots
Total
2
SIM Card slots
1
Mini-PCIe/Mini Card
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 2xUSB
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
-20..70 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
