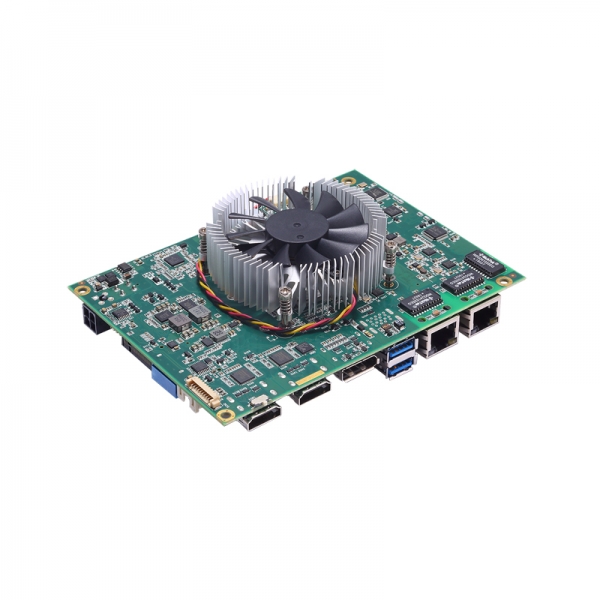

3.5" Embedded SBC with AMD RYZEN V1807B 3.35-3.8GHz, DDR4, DisplayPort++, 2xHDMI, eDP, 2xGbE LAN, 2xCOM, 2xUSB 3.2, 2xUSB 2.0, SATA-600, M.2 Key-B, M.2 Key-E, DIO, Audio
CAPA13S-GGA-V1807B Fan
AXIOMTEK
SKU: 09627700
Price on request
Available on order
Available on order
System Architecture
Form Factor
3.5"
Construction
Type
Fan
CPU
Processor Installed
AMD Ryzen V1807B
Max CPU frequency
3.8 GHz
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
Maximum Memory
16 GB
Assembly
Removable
Ethernet
Controller Type
Realtek RTL8111G-CG 10/100/1000Mbps
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/422/485
1
USB Total
4
USB 2.0
2
USB v3.x
2
Digital Input-Output
Channels of DIO
8
Drive interfaces
SATA 3
1
M.2
1
Extension Slots
M.2
1
Additional Functions
Watchdog timer type
Software
Connectors
Internal Ports
COM, SATA 3, USB 2.0
Connectors
HDMI, RJ45, Display Port, USB type A
Software
Operating System Compatibility
Windows 10
Dimensions and weight
Width
146 mm
Length
104 mm
Operating Conditions
Operating Temperature
-20..60 °C
Standards and Certifications
Certifications
CE
Dimensions
Gross Weight
0.3 kg
