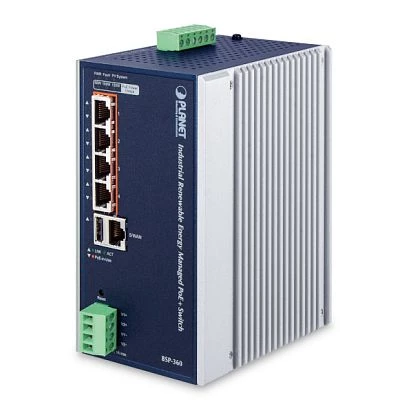

BSP-360

Planet
SKU: 56819300
Industrial DIN-Rail Renewable Energy Managed Ethernet Switch with 4x1000 Base T 802.3at PoE+ (injector function), 1x1000Base T,1xWAN gateway mode, 24-45VDC, 24VDC for Battery , -10..60C Operating Temperature
Price on request
Available on order
Available on order
Ethernet
10/100/1000 Mbit/s
5
PoE+ 10/100/1000 Mbit/s
4
Supported Protocols
Security Protocols
PPTP, L2TP
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), EE 802.3af for Power-over-Ethernet, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
System Power Input
Input Voltage DC
24..45 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
84 mm
Depth
107 mm
Height
152 mm
Operating Conditions
Operating Temperature
-10..60 °C
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
1 kg
Gross Weight
1.5 kg
