BG5-1604-10GSFP-360

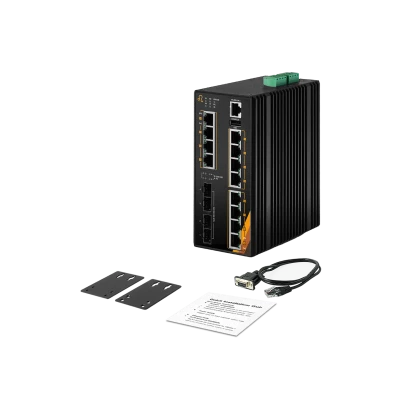

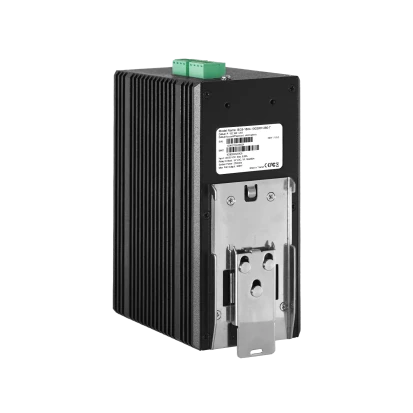

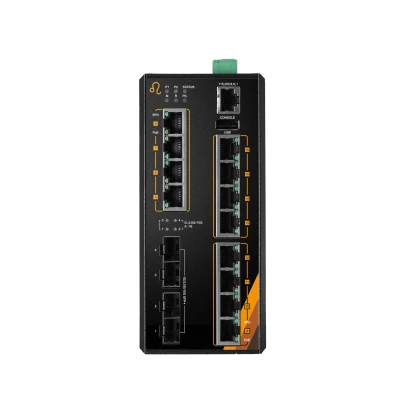

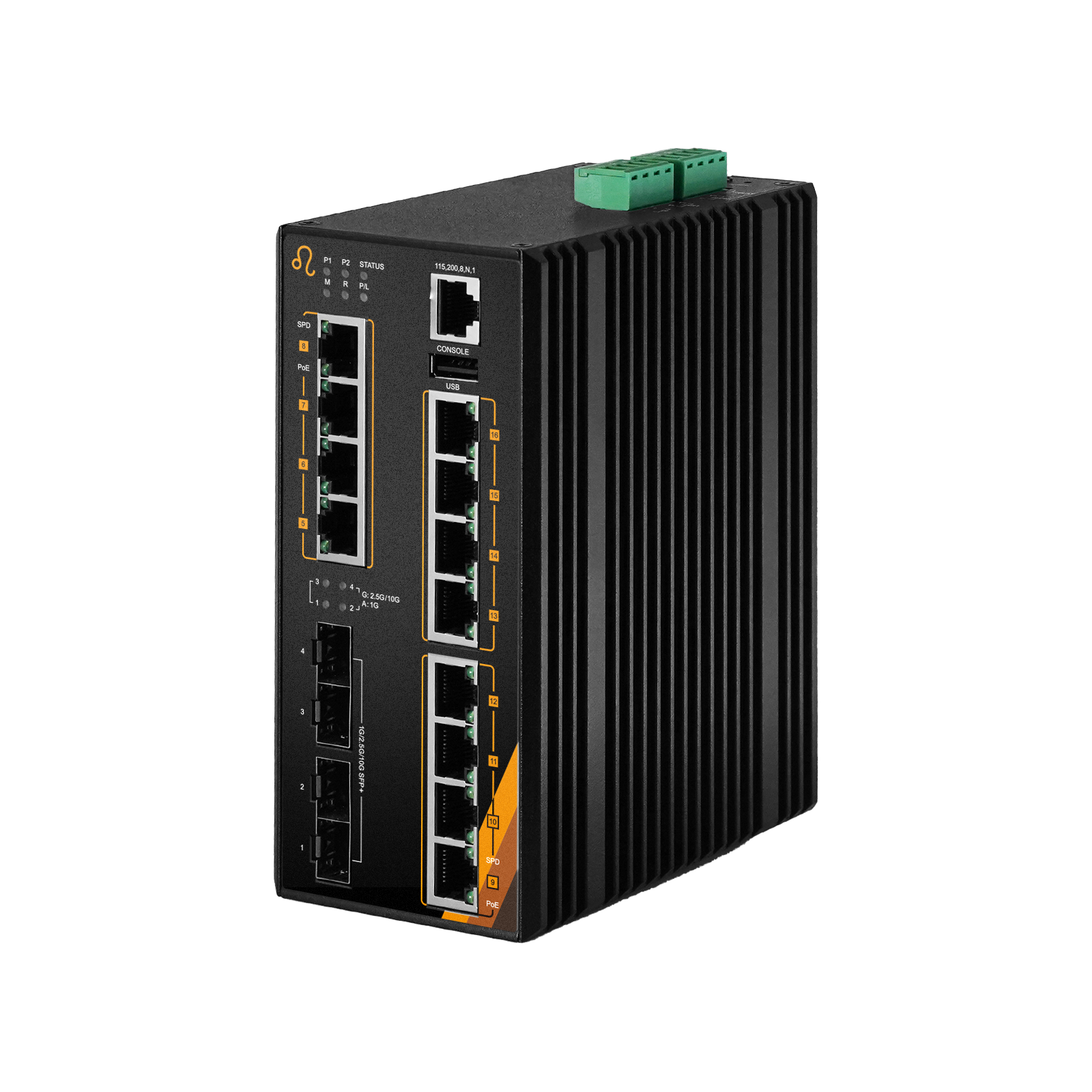

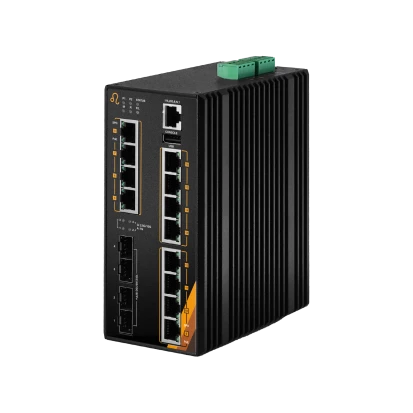

BG5-1604-10GSFP-360

Leonton
SKU: 80149000
Industrial Managed Gigabit Ethernet PoE Switch, IP30, 12x10/100/1000Base-T with PoE, 4x1G/2.5G/10GbE SFP+, Dual 48..55VDC, Operating Temperature -10..65 C
Price on request
Available
Available
Ethernet
Total Ethernet
12
10/100/1000 Mbit/s
12
2.5/10 Gbit SFP+ Ports
4
PoE 10/100/1000 Mbit/s
12
Switch Properties
MAC Table Size
32000
Jumbo Frame Size
9.6 kB
Max. Number of VLANs
4095
IGMP Groups
1024
Supported Protocols
Protocol Layer 3
Static Routing
Managment Protocols
DHCP Server/Client, SNMPv1/v2c/v3, HTTP, LLDP, Telnet, DNS, GVRP, RMON, IGMP Snooping v1/v2/v3, GARP, DHCP Option 82
Reservation protocols
ERPS, MSTP, STP, RSTP
Security Protocols
HTTPS, RADIUS, TACACS+, SSH2
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3u for 100BaseT(X), IEEE 802.3bt for Power over Ethernet
System Power Input
Input Voltage DC
48..55 V
Construction
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
72 mm
Depth
160 mm
Height
130 mm
Operating Conditions
Operating Temperature
-10..65 °C
Humidity
5-95%
Standards and Certifications
Certifications
CE
EMI
FCC Part 15 Subpart B Class A
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61000-6-4, EN 55032, EN 55035
Freefall
IEC 60068-2-32
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Net Weight
0.62 kg
Gross Weight
1.2 kg
