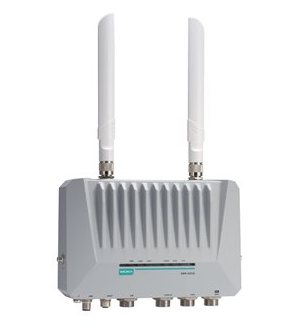

AWK-4252A-UN-T

AWK-4252A-UN-T

MOXA
SKU: 10199200
Outdoor Advanced 802.11ac Wireless Access Point, IP68, UN band, -40 to 75C
Price on request
Available
Available

Ethernet
Total Ethernet
2
Type 10/100/1000 Mbit/s
2xRJ-45
PoE 10/100 Mbit/s
1
PoE 10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Quantity of Wi-Fi
1
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, UDP, DNS, VLAN, TCP/IP, DHCP Client, DHCP Server, ICMP
Security Protocols
HTTPS, SSH, RADIUS, NAT, Firewall, IP Address Filtering, IEEE 802.1X Network Access Control, ACL
IEEE Standard
ieee_802.3u, ieee_802.3ab, ieee_802.3af, ieee_802.3at, ieee_802.3x, ieee_802.1q, ieee_802.3
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
LED
Level signal LED
Controls
1xReset
Setup of Operation Mode
Telnet, Console Port, Web-interface
Connectors
Connectors
Console Port RS-232 (RJ-45)
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP68
Dimensions and weight
Width
66.5 mm
Depth
244 mm
Height
157.6 mm
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
MTBF
746471 h
Standards and Certifications
Certifications
EN61000-6-2, EN61000-6-4, EN 55032, EN 55035
EMI
CISPR 32, FCC Part 15 Class B
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Radio
FCC, rcm
Safety
EN 60950-1, UL 62368-1, en_62368_1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
2 kg
Gross Weight
2.5 kg
