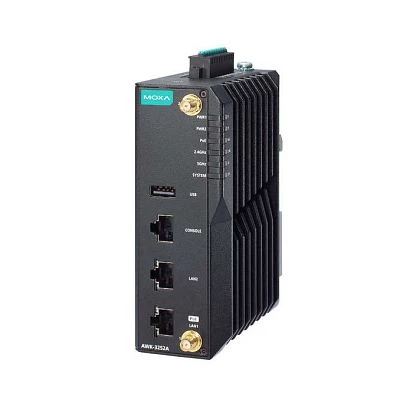

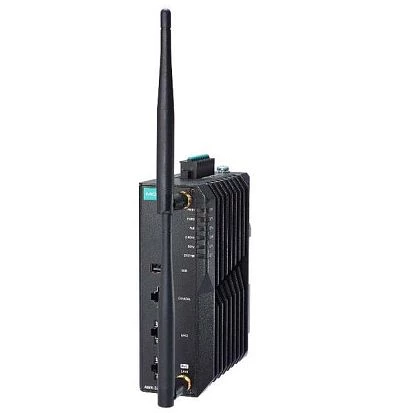

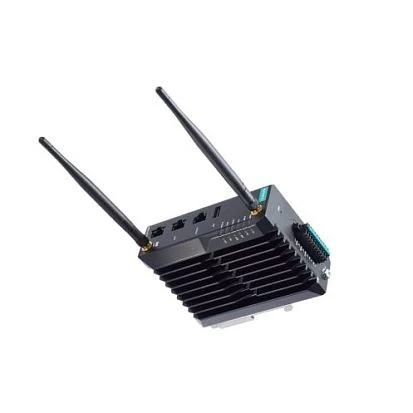

AWK-3252A-UN

AWK-3252A-UN

MOXA
SKU: 09561800
Advanced In-door 802.11ac 2.4GHz/5GHz Dual Radio, 29.5 dBm (630 mW), 2x2:2SS, Dual GbE, PoE+, IP30, Universal model, -25 to 60C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Type 10/100/1000 Mbit/s
RJ-45
PoE+ 10/100/1000 Mbit/s
1
Wi-Fi
Wi-Fi Standard
802.11a/b/g/n/ac
Quantity of Wi-Fi
1
Supported technologies
Turbo Roaming
Supported Protocols
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, UDP, DNS, VLAN, TCP/IP, SNTP Client
Security Protocols
HTTPS, SSH, RADIUS, SSL, NAT, Firewall, IP Address Filtering
Digital Input
Total channels of digital input
2
Digital Output
Total channels of digital output
1
Type
Signal Relay
Contact rating of relay (Form A)
1A@24V DC
LED / Controls
LED
FAULT LED, PoE LED, 10/100/1000M LED, WLAN LED, LAN LED, PWR1, PWR2
Controls
1xReset
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
USB type A
System Power Input
Input Voltage DC
12..48 V
Power Supply Reserve input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE, PoE+, IEEE 802.3at
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
45 mm
Depth
100 mm
Height
130 mm
Operating Conditions
Operating Temperature
-25..60 °C
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-4
Explosion safety
ATEX Zone 2 Group II, UL/cUL Class I Division 2
Safety
IEC 60950-1, UL 62368-1, IEC 62368-1
Vibration And Shock
IEC 60068-2-6
Dimensions
Net Weight
1 kg
Gross Weight
1 kg
Ethernet
