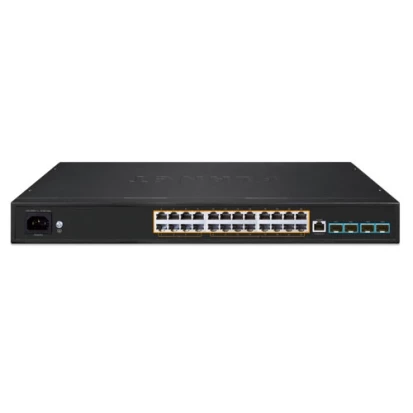

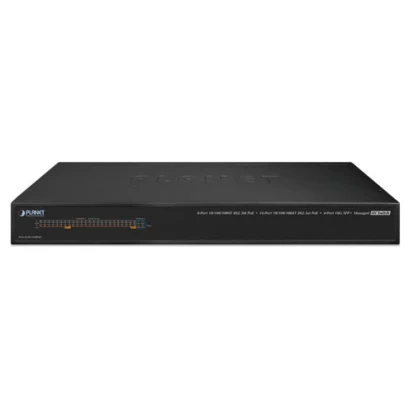

AVS-4210-24HP4X

SKU: 80197500

Managed AV Switch, 8x10/100/1000Base-T with 95W PoE++, 16x10/100/1000Base-T with 32W PoE+, 4x10GBase-SR/LR SFP+, 100..240VAC, Operating Temperature 0..50 C

Price on request

Ethernet

Total Ethernet

10/100/1000 Mbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, DHCP, SNTP, GVRP, TFTP, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

MSTP, STP, RSTP

Security Protocols

RADIUS, TACACS+

IEEE Standard

IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3u for 100BaseT(X) and 100BaseFX, IEEE 802.3x for Flow Control, IEEE 802.3z for 1000BaseSX/LX/LHX/ZX, IEEE 802ae for 10 Gigabit Ethernet, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3bt for Power over Ethernet

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

441.5 mm

Depth

207.7 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

3.4 kg

Gross Weight

3.9 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, DHCP, SNTP, GVRP, TFTP, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

MSTP, STP, RSTP

Security Protocols

RADIUS, TACACS+

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

441.5 mm

Depth

207.7 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

3.4 kg

Gross Weight

3.9 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, DHCP, SNTP, GVRP, TFTP, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

MSTP, STP, RSTP

Security Protocols

RADIUS, TACACS+

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

441.5 mm

Depth

207.7 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

3.4 kg

Gross Weight

3.9 kg

Ethernet

Total Ethernet

10/100/1000 Mbit/s

10 Gbit SFP+ Ports

PoE+ 10/100/1000 Mbit/s

Switch Properties

Jumbo Frame Size

12 kB

Supported Protocols

Managment Protocols

SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, DHCP, SNTP, GVRP, TFTP, LACP, ARP, IGMP Snooping v1/v2/v3, IGMP Querier

Reservation protocols

MSTP, STP, RSTP

Security Protocols

RADIUS, TACACS+

IEEE Standard

System Power Input

Input Voltage AC

100..240 V

Dimensions and weight

Width

441.5 mm

Depth

207.7 mm

Height

44 mm

Operating Conditions

Operating Temperature

0..50 °C

Humidity

5-95%

Standards and Certifications

Certifications

CE, FCC Class A

Dimensions

Net Weight

3.4 kg

Gross Weight

3.9 kg

Documentation

Documentation

Documentation

Documentation

Get a Quote

AVS-4210-24HP4X

SKU: 80197500
