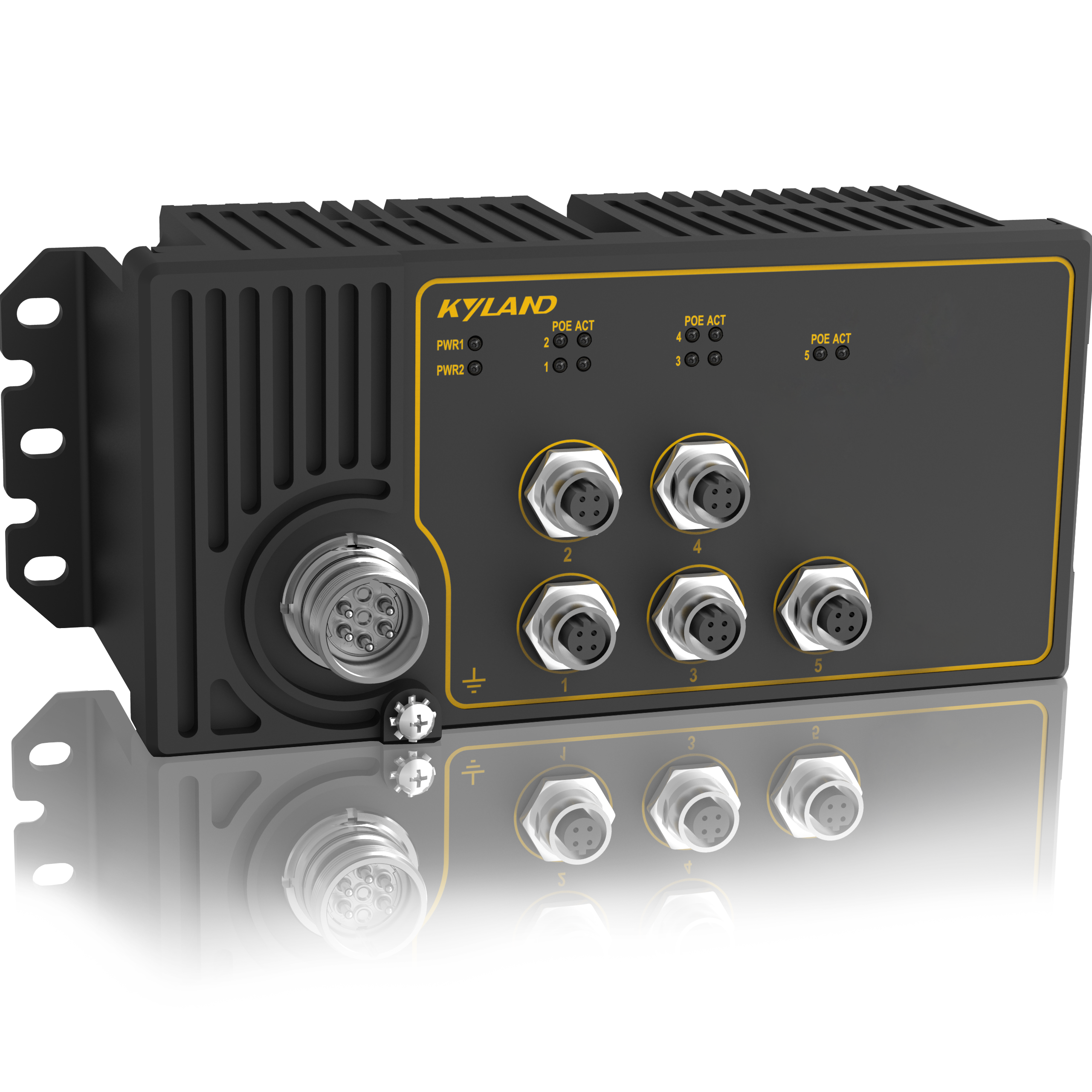

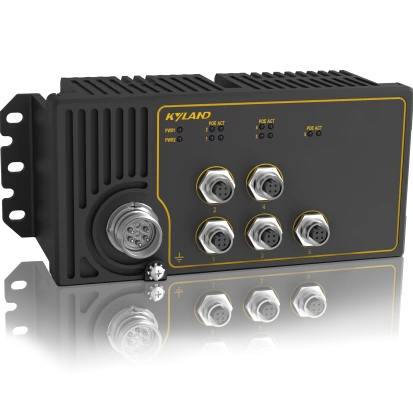

Aquam5S-5P-WV-WV

Aquam5S-5P-WV-WV

Kyland
SKU: 10147300
Unmanaged EN50155 PoE Switch, 5 x 10/100Base-TX M12 ports IEEE 802.3af/at PoE, redundant power inputs 24-110 VDC, EN50155, IP65, -40...+70C
Price on request
Available
Available

Ethernet
Total Ethernet
5
10/100 Mbit/s
5
Type 10/100 Mbit/s
M12
PoE 10/100 Mbit/s
5
Power Budget
30 W
Switch Properties
Managed
No
Switch Level
Layer 2
MAC Table Size
16000
Packet Buffer Size
412 kBit
Supported Protocols
IEEE Standard
ieee_802.3i, ieee_802.3u, ieee_802.3ab, ieee_802.3af, ieee_802.3at
System Power Input
Redundant power input
Yes
Input Voltage DC
24..110 V
Power Supply Reserve input Voltage DC
24..110 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel
Protection Level of Chassis
IP65
Dimensions and weight
Width
238 mm
Depth
89.6 mm
Height
100 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
5-95%
Vibration
Да
Shock
Да
MTBF
2092908 h
Standards and Certifications
Certifications
CE/FCC, EAC, EN50155/50121
EMI
FCC CFR47 Part 15, EN55022/CISPR22, Class A
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-9, IEC 61000-4-29
Rolling Stock
EN 50121, EN 50155, EN 45545-2
Vehicle
E-Mark
Safety
EN 60950-1
Freefall
IEC 60068-2-32
Vibration And Shock
EN 61373 Category 1 Class B
Dimensions
Net Weight
0.3 kg
Gross Weight
1.8 kg
