APPD-1900-1
NEXCOM
SKU: 10710100
19" SXGA industrial 4:3 LED Backlight flush touch monitor with VGA, DVI-D and Display Port input, 24VDC input, RS-232 and USB touch screen interfaces
Price on request
Available on order
Available on order
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
DisplayPort, VGA, DVI-D
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors

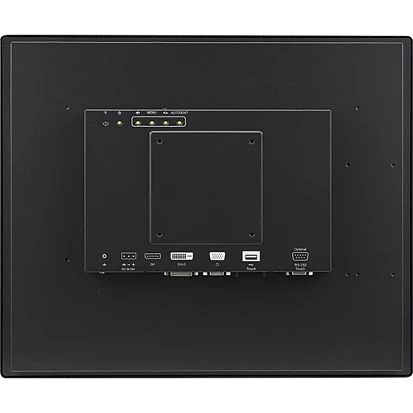

DB9, DVI-D, DB15 VGA, 1xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
-10..60 °C
Humidity
10-90%
Dimensions and weight
Width
457.64 mm
Height
379.24 mm
Depth
51.25 mm
Standards and Certifications
Certifications
CE, FCC Class B
Dimensions
Gross Weight
6 kg
