APPD-1700-2
NEXCOM
SKU: 80078900

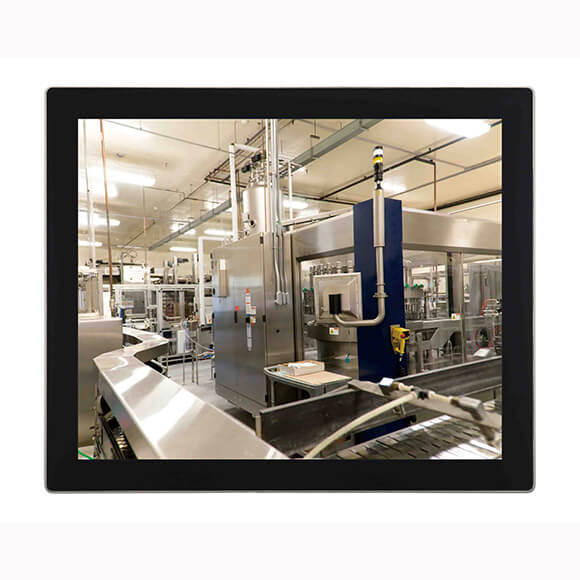

17" Industrial Touch Monitor APPD1700, 1280 x1024, 400cd/m2, Resistive (flush panel type) Touch, VGA, DVI-D, Display Port, RS-232 / USB touch interfaces, Aluminum front bezel, 24V DC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Panel, Wall, Wall VESA 100
Protection Level of Front Side (Panel)
IP65
Material Front Side (Panel)
Aluminum
Display
Display Type
LCD TFT
Diagonal
17 "
Maximum resolution
1280x1024 Dots
Aspect Ratio
4:3
Brightness
400 Cd/m2
Contrast Ratio
1000~1
Touch Screen
Touch Screen Type
Resistive
Interface
USB
LED / Controls
LED
Power LED
Connectors
Connectors
DB9, DVI-I, DB15 VGA, 1xUSB, Display Port, DC input (terminal block)
System Power Input
Input Voltage DC
24..24 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..50 °C
Humidity
10-90%
Temperature (Storage)
-20~+70
Dimensions and weight
Width
391.8 mm
Height
325.6 mm
Depth
56.65 mm
Standards and Certifications
Certifications
CE, FCC Class A
Dimensions
Net Weight
4.8 kg
Gross Weight
5.2 kg
