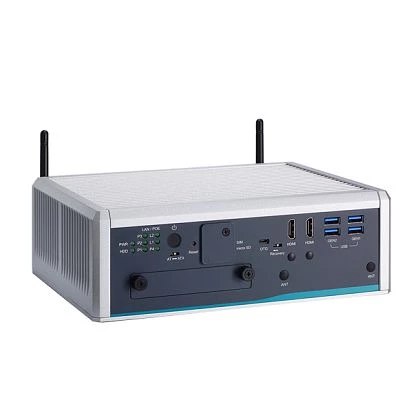

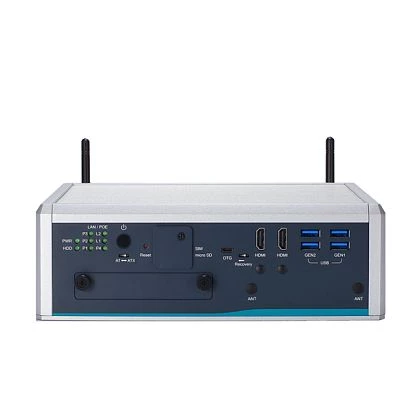

AIE900-902-FL-NVMe
AXIOMTEK
SKU: 10089600
Fanless Embedded System with CPU Board GPU NVidia Jetson Xavier AGX, CPU 8-core NVIDIA Carmel ARM, GPU NVIDIA 512 CUDA cores, 32GB LPDDR4, 32GB eMMC, 1xHDMI, 2xGbE LAN, 4xPoE, 2xUSB 3.0, 2xUSB 2.0, OTG, PCIe Mini, 1 x M.2, SIM, MicroSD, 24VDC, NVMe
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
DIN-Rail mount, Desktop, Wall, Wall VESA 100
Type
Fanless
CPU
Processor Installed
NVIDIA Jetson AGX Xavier (8-core ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3)
Chipset
Chipset
SoC
Memory
Form-factor
DDR4
Socket Type
Soldered
Maximum Memory
32 GB
Graphic
Graphic Controller
NVIDIA Volta GPU, 512-Core, 64 Tensor Cores
Ethernet
Controller Type
Intel i210-IT
Total Ethernet
6
10/100/1000 Mbit/s
2
Interfaces
RS-232
2
USB Total
7
USB 2.0
2
USB v3.x
4
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
2
Drive interfaces
MicroSD
1
Extension Slots
M.2
2
Mini-PCIe/Mini Card
1
SIM Card slots
1
Antenna characteristics
Cellular interfaces
3G (Optional)
Connectors
Connectors
2xDB9, 2xHDMI, 6xRJ45 Ethernet, 6xUSB, DC Input, 1xMicro USB
System Power Input
Input Voltage DC
23..25 V
Software
Operating System Compatibility
Ubuntu
Dimensions and weight
Width
147 mm
Height
52 mm
Depth
118 mm
Operating Conditions
Operating Temperature
-30..60 °C
Vibration
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Standards and Certifications
Certifications
CE, FCC Class A
Safety
CCC, UL, BSMI
Dimensions
Net Weight
2.8 kg
Gross Weight
3.45 kg
