Real-Time Palm Oil Maturity Inspection with the NEXCOM AIEdge-X®310

Edge AI is changing the way agricultural producers handle quality control. The NEXCOM AIEdge-X®310 is an industrial AI computing system combining 14th/13th/12th Gen Intel® Core™ processors with high-end NVIDIA® discrete graphics cards to deliver real-time computer vision and deep learning inference at the edge — without reliance on cloud connectivity. This article examines how the AIEdge-X®310 was deployed to automate palm oil maturity classification, and what makes it a capable platform for demanding vision applications across industries. You can find the AIEdge-X®310 and other NEXCOM products at ipc2u.com.

Product Specification Overview

AIEdge-X®310 — Industrial AI Edge Computing System with NVIDIA® GPU Acceleration

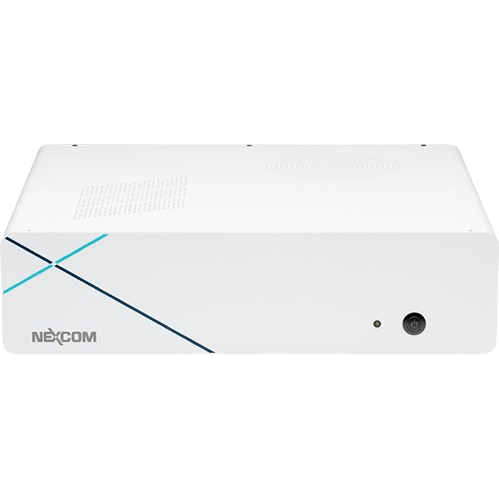

NEXCOM AIEdge-X®310 — Industrial AI Computing System at the Edge

The NEXCOM AIEdge-X®310 is a compact industrial AI workstation designed for demanding edge computing applications. It accommodates 14th, 13th, and 12th generation Intel® Core™ processors — ranging from i3 to i9 — and pairs them with a full-length PCIe 4.0 ×16 expansion slot capable of hosting graphics cards up to the NVIDIA® RTX™ 6000 Ada Generation (650W TGP limit). With support for NVIDIA® GeForce RTX™ 50 and Quadro series cards, the system scales from mid-range inference workloads up to high-throughput deep learning deployments. Two DDR5 SO-DIMM slots provide up to 64GB of system memory, supporting data-intensive vision pipelines.

The AIEdge-X®310 targets applications where local, real-time AI processing is essential: automated visual inspection on production lines, smart retail analytics, interactive projection systems, and augmented reality deployments. In a documented palm oil production use case, the system was installed at fresh fruit bunch (FFB) sorting points in Southeast Asia. Camera feeds from IP and USB cameras were processed directly on-device, classifying each bundle into Unripe, Intermediate, or Ripe categories without sending data to the cloud. This architecture reduced inspection latency, cut network bandwidth consumption, and allowed operation even in remote facilities with limited connectivity.

On the connectivity side, the AIEdge-X®310 provides dual LAN ports — one 1GbE and one 2.5GbE — alongside two serial COM ports (one RS-232 fixed, one configurable for RS-232/422/485), four USB 3.2 Gen 1 ports, two USB 2.0 ports, and two DisplayPort 1.4 outputs. Storage options include two 2.5" SATA 3.0 bays and an M.2 Key M 2280 slot supporting PCIe 4.0 ×4 or SATA 3.0. An 8-bit GPIO header allows direct integration with external I/O devices on the factory floor. The 850W internal power supply handles both the host system and discrete GPU load from a single IEC inlet (AC 100V–240V).

The system is certified to CE (EMC EN 55032 + EN 55024) and FCC Class A, and includes TPM 2.0 for hardware-rooted security. It operates across a 0°C to 45°C ambient range and is validated against IEC 60068-2-27 shock and IEC 60068-2-64/2-6 vibration standards, making it suitable for semi-industrial environments where conditions go beyond typical office-grade computing. Supported operating systems include Windows 10 (64-bit) and Linux, providing compatibility with standard AI development toolchains including NVIDIA® CUDA® and common inference frameworks.

The Palm Oil Case Study: From Manual Grading to Automated Edge Inference

Palm oil production in Southeast Asia involves the manual inspection of fresh fruit bunches at collection and processing stations. The maturity of each bunch directly determines the quality and yield of extracted crude palm oil (CPO), making accurate grading a critical step. Traditional visual checks, however, are inconsistent — results vary with operator experience, fatigue, and available lighting, and throughput is limited by the speed of human review.

The solution deployed around the AIEdge-X®310 replaces manual grading with an automated computer vision pipeline. Cameras at sorting points capture images of incoming fruit bunches, which are then processed locally by the AIEdge-X®310's GPU-accelerated inference engine. A trained deep learning model classifies each bundle in real time, triggering the appropriate sorting decision without operator intervention. Because the entire inference chain runs on-device, processing latency is determined by the GPU's compute throughput rather than network round-trip time.

After deployment, the system delivered measurable improvements in grading consistency and throughput. Round-the-clock operation (24/7) became practical without staffing implications. The reduction in cloud data transmission lowered ongoing network costs, and the modular nature of the hardware allowed the same configuration to be replicated across multiple sites with consistent performance. The AIEdge-X®310's support for current NVIDIA® GPU generations also provides a forward-compatible platform — the inference model can be retrained or updated, and the hardware can accommodate more capable GPUs as they become available, without replacing the host system.
