PLANET Technology has expanded its line of enterprise-grade networking hardware with the launch of the GS-6311-24PL4X , a powerful Layer 3 managed switch that combines high-density Power over Ethernet, dynamic routing capabilities, and 10G fiber uplinks in one compact solution.
Optimized for Enterprise and Surveillance Environments
Designed as a plug-and-play solution for demanding network environments, the GS-6311-24PL4X supports quick installation, real-time PoE operation monitoring, and instant device diagnostics. It enables streamlined deployment without the need for additional software or configuration tools, making it an ideal choice for IP surveillance, wireless LAN, and VoIP infrastructure.
24-Port PoE+ and 720W Power Budget
At the core of the GS-6311-24PL4X is its robust 24 10/100/1000BASE-T PoE+ ports, fully compliant with IEEE 802.3at standards. Each port delivers up to 32 watts, enabling the switch to power multiple high-consumption devices such as PTZ cameras, speed dome IP cameras, and outdoor surveillance units. The total PoE power budget of 720 watts ensures all ports can operate at full load simultaneously.
This all-in-one PoE design significantly reduces deployment complexity by transmitting both power and data over a single Ethernet cable. The need for additional power infrastructure is eliminated, cutting down installation costs and enabling more flexible device placement in hard-to-reach areas.
Intelligent PoE Features for Reliability and Energy Efficiency

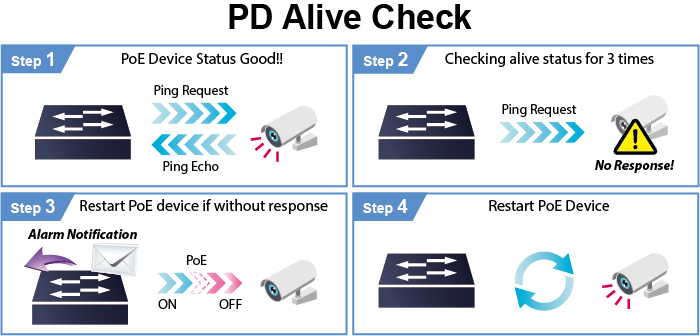

The GS-6311-24PL4X offers intelligent PoE features including a PD Alive Check function, which monitors the status of connected powered devices. If a device becomes unresponsive, the switch will automatically cycle the power to restore operation. This self-healing feature minimizes downtime and manual maintenance.
Additionally, the PoE Scheduling feature enables administrators to configure power delivery per port based on time-of-day settings. This is especially useful in energy-conscious environments, allowing power to be disabled during non-operational hours to reduce consumption and operational costs.
High-Speed 10G Fiber Uplinks and Non-Blocking Performance
To support bandwidth-heavy applications, the switch includes four 1G/10GBASE-X SFP+ ports. These uplinks allow for flexible high-speed fiber connections to core switches, servers, or storage devices. The switch architecture supports a non-blocking 128Gbps switching fabric, delivering full wire-speed throughput and minimal latency even in large-scale deployments.
Dual-speed support allows each SFP+ port to operate as either 10Gbps or 1Gbps, ensuring compatibility with a wide range of transceivers and simplifying upgrade paths for expanding networks.
Strong Multicast and Full IPv6 Support

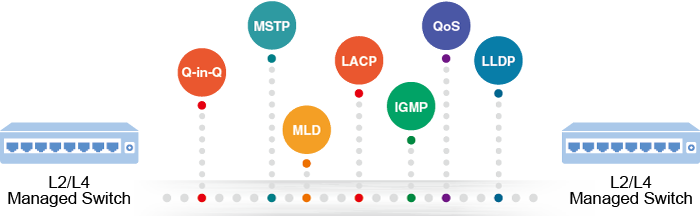

The GS-6311-24PL4X is fully IPv6-ready and supports IGMPv1/v2/v3 snooping for IPv4 and MLDv1/v2 snooping for IPv6. These multicast management features allow for optimized media streaming and dynamic multicast control in environments such as IPTV or surveillance networks.
The addition of Multicast VLAN Registration (MVR) and illegal multicast source detection provides administrators with granular control over multicast traffic, reducing unnecessary broadcast load and securing data streams.
Comprehensive Security and Access Control
Security is a key focus of the GS-6311-24PL4X . The switch supports Layer 2 to Layer 4 Access Control Lists (ACLs), enabling traffic filtering by IP, MAC address, TCP/UDP ports, or specific applications.
- 802.1X authentication (port-based, MAC-based, web-based)
- RADIUS integration for centralized access control
- DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection to block spoofing and unauthorized access
These enterprise-grade security measures ensure robust protection at the network edge.
Conclusion
With its rich feature set, high power output, and scalable 10G connectivity, the PLANET GS-6311-24PL4X delivers a versatile and secure switching solution for modern enterprises. From smart buildings and surveillance to VoIP and cloud access networks, it offers reliability, performance, and flexibility in a single, cost-effective platform.
