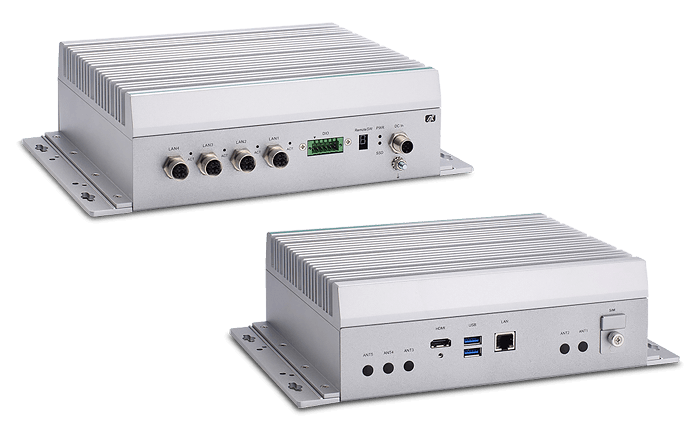

Axiomtek has introduced the new rugged embedded computer tBOX210, specifically designed for railway transportation, rolling stock, and intelligent video surveillance systems, including Network Video Recorders (NVRs). The new platform has received key international certifications, including EN 50155, EN 45545-2, and NFPA 130. These certifications confirm that the computer is suitable for railway applications and meets stringent requirements for fire safety, vibration resistance, and protection against electromagnetic interference (EMI) and voltage surges in accordance with EN 50121-3-2 and IEC 62236-3-2 standards.
At the heart of the tBOX210 is an LGA1700 socket based on the Intel Q670E chipset. The platform supports Intel Core i3, i5, i7, and i9 processors, as well as Celeron processors from the 12th, 13th, and 14th generations, with a TDP of up to 35 W. The memory subsystem features a single DDR5 SO-DIMM slot, supporting up to 32 GB of RAM.
One of the key features of the tBOX210 is its full compatibility with the onboard power networks used in Railways rolling stock and metro systems. The computer is equipped with a reliable M12 connector and supports a wide input voltage range of 24 to 110 V DC. In addition, the system features Smart Ignition intelligent power management technology, which protects the equipment against voltage fluctuations and ensures proper system startup and shutdown when a train or metro train is powered on or off.
The combination of high-performance 14th-generation Intel processors, industrial-grade protection, railway certifications, and flexible power management makes the Axiomtek tBOX210 a suitable platform for demanding railway applications, including onboard video surveillance, NVR systems, passenger information systems, and other intelligent transportation solutions.
Key Technical Specifications of the Axiomtek tBOX210:
- Processor platform: Supports 12th, 13th, and 14th Generation Intel Core processors, as well as Intel Celeron processors, via an LGA1700 socket with a TDP of up to 35 W. The system is based on the Intel Q670E chipset.
- Memory: Features one DDR5 SO-DIMM slot supporting up to 32 GB of RAM.
- Networking: Provides four 2.5 GbE LAN ports with rugged M12 X-coded connectors for reliable IP camera connectivity, plus one additional 2.5 GbE RJ-45 LAN port.
- Storage: Includes one M.2 Key M 2280 NVMe slot supporting PCIe x4/SATA for the operating system, along with bays for removable 2.5-inch SATA drives with a maximum thickness of 15 mm. Two configurations are available: two SATA drives with RAID 0/1 support in the standard tBOX210-RLS-MR version, and four SATA drives with RAID 0/1/5/10 support in the tBOX210-RLS-MR2 version.
- Expansion and wireless connectivity: Includes an M.2 Key B 3052 slot for 5G/LTE modems, a full-size PCI Express Mini Card slot, an M.2 Key E slot for Wi-Fi 6 and Bluetooth, and two Nano SIM card slots.
- I/O interfaces: Provides an HDMI video output supporting resolutions of up to 3840 × 2160 at 30 Hz, two USB 3.2 Gen 2 ports, and an isolated DIO interface with six inputs and two outputs, featuring 2 kV isolation.
- Protection and operating conditions: The fanless system features an IP30-rated enclosure and a rugged aluminum-and-steel housing. It is designed to operate reliably across a wide temperature range from −40 °C to +70 °C.
- Security and remote management: Incorporates an integrated TPM 2.0 hardware module and supports Axiomtek’s AXView remote monitoring software.
Thanks to its high computing performance, rugged M12 connectors, support for advanced 5G and Wi-Fi 6 wireless technologies, and specialized railway certifications, the Axiomtek tBOX210 onboard computer is an excellent solution for integration into Railways projects.
The system is well suited for a wide range of railway and metro applications, including passenger information systems, comprehensive video surveillance, dispatch and control systems, and data analytics solutions. Its rugged design, reliable connectivity, and compliance with key railway standards make the tBOX210 a suitable platform for demanding onboard computing environments.
