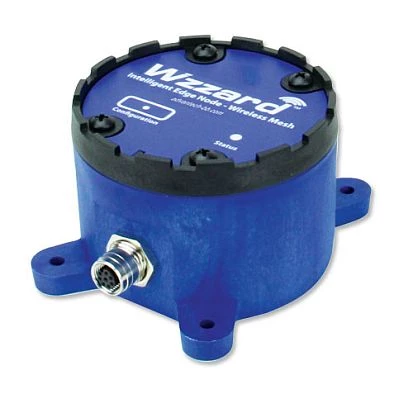

WSD1MD2
Advantech
SKU: 07807400
Wireless Mesh 802.15.4e; 2 Digital Inputs, 2 Digital Outputs; Internal Antenna, M12 Connector
Price on request
Available
Available
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
Wall, Magnetic mount
Protection Level of Chassis
IP66
RF Interface
Radio Standard
802.15.4e
Supported Protocols
Industrial Protocols
MQTT client
Digital Input
Total channels of digital input
2
Level of Logic "0"
0~0.97 V
Level of Logic "1"
1.8~48 V
Sink/Source
Sink, Source
Digital Output
Total channels of digital output
2
Type
Open collector
Output voltage
0~30 V
Connectors
Connectors
M12
System Power Input
Input Voltage DC
3..3 V
Dimensions and weight
Width
95.3 mm
Depth
116 mm
Height
65.2 mm
Operating Conditions
Operating Temperature
-40..80 °C
Standards and Certifications
EMI
EN 55022, FCC Part 15, CISPR 22 Class
EMS
IEC 61000-6-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-6-4
Oil And Gas
UL/cUL Class I Division 2 Groups A/B/C/D
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27
Dimensions
Gross Weight
0.5 kg
