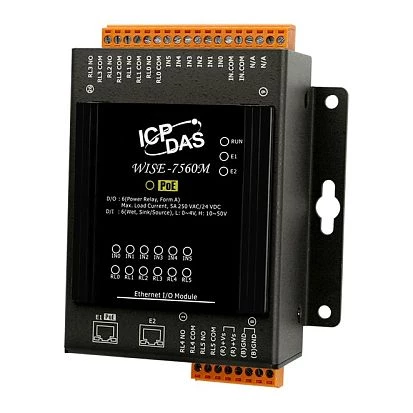

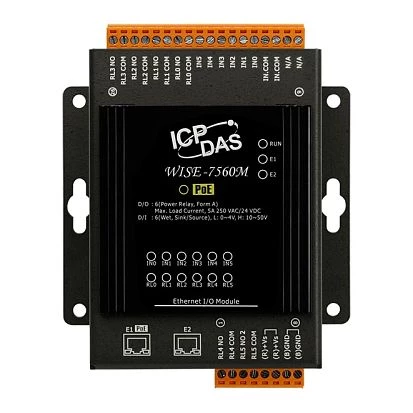

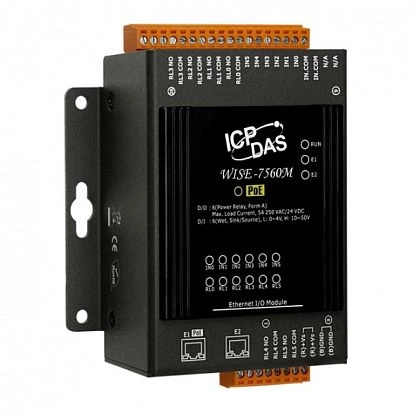

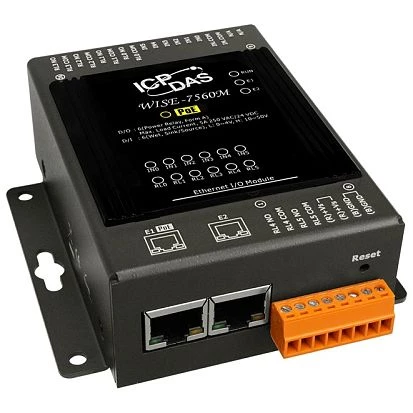

WISE-7560M
ICP DAS
SKU: 07358600
WISE I/O Module with 6-channel Relay, 6-channel Digital Input and 2-port Ethernet Switch, PoE
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Software
Programming Method
IF-THEN-ELSE Logic Rules
Digital Input
Total channels of digital input
6
Isolation of Digital Input
2500 V
Type
Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
0~4 V
Level of Logic "1"
10~50 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
6
Type
Solid-Sate relay
Relay (Form A)
6
Contact rating of relay (Form A)
5A@250V AC, 5A@28V DC
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
