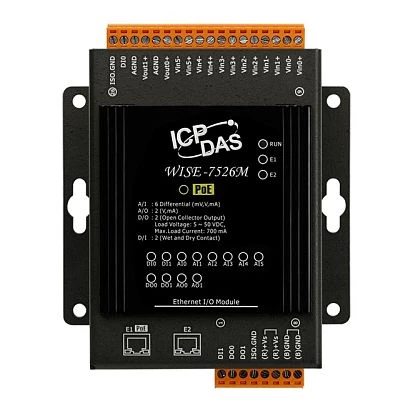

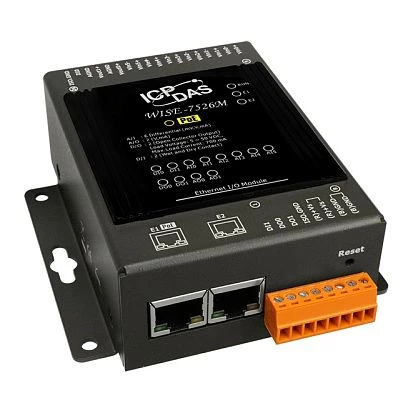

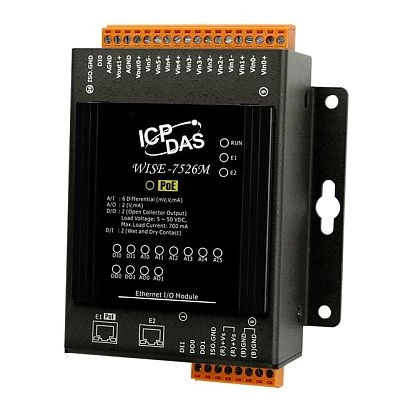

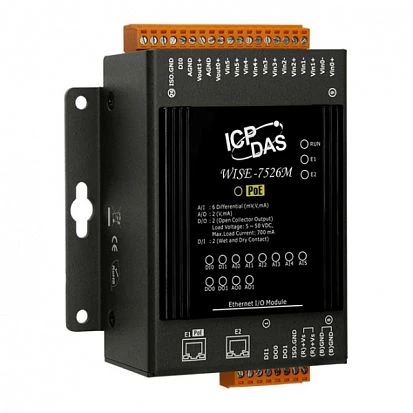

WISE-7526M
ICP DAS
SKU: 07358500
WISE I/O Module with 6-channel Analog Input, 2-channel Analog Output, 2-channel Digital Input, 2-channel Digital Output and 2-port Ethernet Switch, PoE
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Wall
CPU
Processor Installed
32-bit RISC
Software
Programming Method
IF-THEN-ELSE Logic Rules
Analog Input
Total channels of analog input
6
Differential channels
6
Number of Bits
16 Bit
Sampling rate
10 Hz
Current range
0...20 mA, 4...20 mA, -20...+20 mA
Voltage range
+/-500 mV, +/-1 V, +/-5 V, +/-10 V
Analog Output
Channels of analog input
2
DAC Bit Rate
12 Bit
Current range
0...20 mA, 4...20 mA
Voltage range
0...5 V, 0...10 V, +/-5 V, +/-10 V
Digital Input
Total channels of digital input
2
Isolation of Digital Input
2500 V
Type
Dry contact, Wet contact
Sink/Source
Sink, Source
Level of Logic "0"
3.5~30 V
Level of Logic "1"
0~1 V
Counter
50Hz, 16 bit
Digital Output
Total channels of digital output
2
Type
Open collector
Max. load current
700 mA
Output voltage
5~50 V
Ethernet
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
Modbus TCP server, MQTT client
Connectors
Connectors
Screw Terminal
Dimensions and weight
Width
97 mm
Depth
42 mm
Height
120 mm
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-25..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Gross Weight
0.35 kg
