W42L300-OFA3HB

W42L300-OFA3HB

Winmate
SKU: 07812300

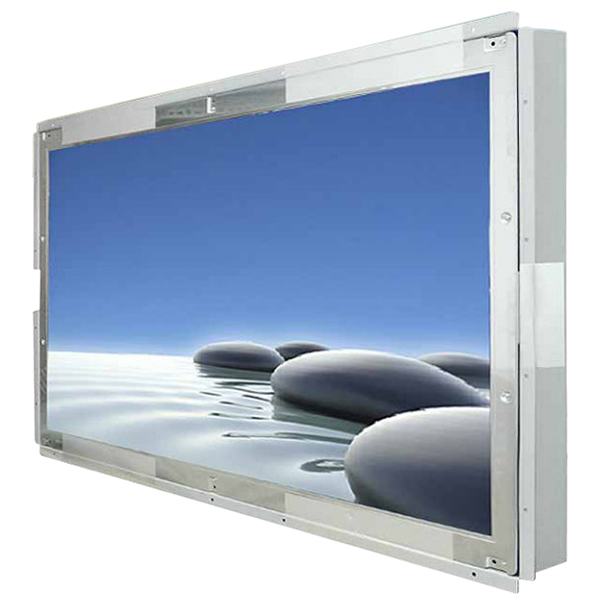

42" Active matrix TFT LCD with resolution 1920x 1080 Brightness: 700 cd/m2, VGA+HDMI
Price on request
Available
Available

Construction
Construction Chassis
Open Frame
Mounting Configuration
Wall VESA 100, Wall VESA 75, VESA 200
Display
Display Type
LCD
Diagonal
42 "
Maximum resolution
1920x1080 Dots
Aspect Ratio
16:9
Brightness
700 Cd/m2
Contrast Ratio
2500~1
Input Interface
HDMI, VGA
LED / Controls
LED
Power LED
Controls
On/Off, Control Buttons
Connectors
Connectors
DB15 VGA, HDMI, DC Input
System Power Input
Input Voltage DC
24..24 V
Power Consumption
100 W
Power Supply
Type of Power Supply
External power adapter AC/DC
Input Voltage AC
100..240 V
Operating Conditions
Operating Temperature
0..50 °C
Dimensions and weight
Width
1024.2 mm
Height
617.2 mm
Depth
68 mm
Dimensions
Net Weight
29.08 kg
Gross Weight
32 kg

Documentation
Datasheet W42L300-OFA3HB

Get a Quote

Winmate
SKU: 07812300
W42L300-OFA3HB
