IDS-3119N-35SXA1E
Advantech
SKU: 06707400

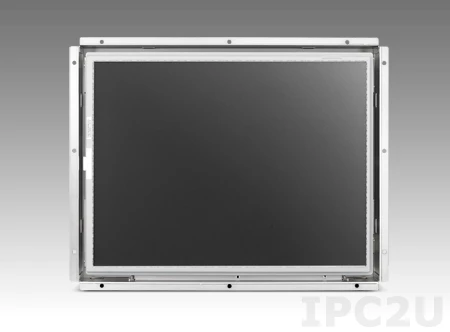

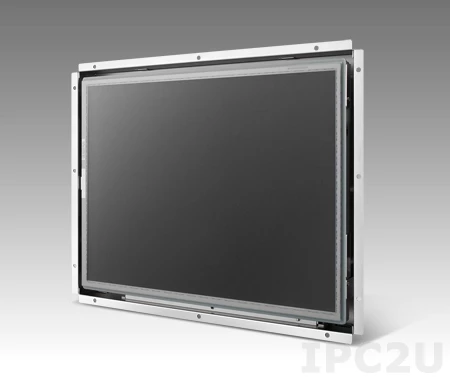

Industrial Open Frame 19" LCD Display, SXGA 1280 x 1024, VGA, DVI, 12V DC
Price on request
Available on order
Available on order
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Embedded, Panel, Wall VESA 100, Wall VESA 75
Display
Display Type
LCD
Diagonal
19 "
Maximum resolution
1280x1024 Dots
Brightness
350 Cd/m2
Contrast Ratio
1000~1
Input Interface
VGA, DVI-D
LED / Controls
Controls
On/Off, KeyPad
Connectors
Connectors
DVI-D, DB15 VGA, DC Input
System Power Input
Input Voltage DC
12..12 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Operating Conditions
Operating Temperature
0..45 °C
Vibration
2.16Grms sine, 5~500Hz, 1hr/axis
Dimensions and weight
Width
438 mm
Height
369.7 mm
Depth
34.3 mm
Standards and Certifications
Certifications
CE, FCC
Safety
CCC
Dimensions
Net Weight
5.15 kg
Gross Weight
6.9 kg
