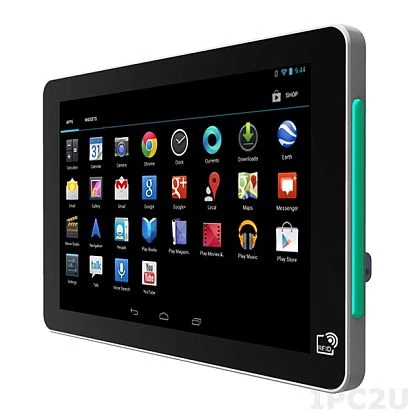

W10FA3S-PCH2AC
Winmate
SKU: 06898100
Fanless Panel PC 10.1" TFT LCD, projective capacitive touch, ARM Cortex A9 iMX6 1.0GHz CPU, 1GB LPDDR3, 16GB eMMC, 1xCOM, 2xUSB, 1xLAN (PoE), HDMI, 1xMicro SD slot, HF-RFID, NFC, Audio, OS Android, power adapter AC DC
Price on request
Available
Available
Construction
Construction Chassis
ABS plastic chassis
Mounting Configuration
Desktop, Panel, Wall, Wall VESA 75
Protection Level of Front Side (Panel)
IP65
Type
Fanless
Display
Display Type
LCD TFT
Diagonal
10.1 "
Maximum resolution
1280x800 Dots
Brightness
300 Cd/m2
Contrast Ratio
800~1
Touch Screen
Touch Screen Type
Capacitive
CPU
Processor Installed
ARM Cortex A9
Max CPU frequency
1 GHz
Memory
Form-factor
DDR3
Default on Board Memory
1 GB
Maximum Memory
2 GB
Graphic
Graphic Controller
Integrated in CPU
Ethernet
Controller Type
Broadcom BCM57780
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
2
RS-232
2
USB Total
3
USB 2.0
2
Drive interfaces
mSATA
1
MicroSD
1
Installed drive
Drive Type
SSD
1st Storage Capacity
16 GB
LED / Controls
LED
Power LED, Programmable LED Light Bar Indicator
Controls
On/Off
Connectors
Connectors
2xDB9, RJ45 Ethernet, 3xUSB, DC input (terminal block), SD card slot
System Power Input
Input Voltage DC
12..12 V
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS
Operating System Installed
Android
Dimensions and weight
Width
263.28 mm
Height
171 mm
Depth
35.7 mm
Operating Conditions
Operating Temperature
0..50 °C
Dimensions
Net Weight
1.5 kg
Gross Weight
3 kg
