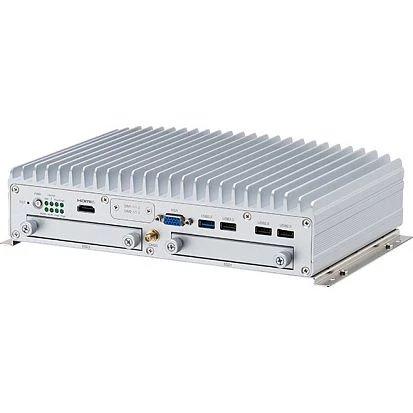

VTC-7280-5
NEXCOM
SKU: 80074200
Vehicle AI Computer VTC-7280, Intel Core Ultra 5 125H CPU, (Up to 32GB) 8GB DDR5 RAM, VGA/HDMI, 2x2.5GbE LAN, 1xUSB 3.2, 3xUSB 2.0, 3xCOM, 1xDB15 (8-bit DIO/CAN), GPS, Audio, 2x2.5" Bay, 2xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis with Aluminium Heatsink
Mounting Configuration
Desktop, Wall
Type
Fanless
CPU
СPU Generation/Family
Meteor Lake
Processor Installed
Intel Core Ultra 5 125H
Socket
FCBGA2049
Max CPU frequency
4.5 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR5
Socket Type
2xSODIMM
ECC
No
Default on Board Memory
8 GB
Maximum Memory
64 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI, VGA
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
2
2,5 Gbit/s
2
Interfaces
COM Total
3
RS-232
1
RS-232/422/485
2
USB Total
4
USB 2.0
3
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
2
Drive interfaces
SATA 3
2
M.2
1
Storage Cage
Number Of Cage External
2
2.5" Cage External
2
Extension Slots
Total
5
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B
Mini-PCIe/Mini Card
2
SIM Card slots
Yes, 4, Nano SIM
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, WLAN LED, SSD LED
Controls
On/Off, 1xReset
Connectors
Connectors
3xDB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, 1xDB15 DIO, DC input (terminal block)
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise, Windows 10, Windows 11, Windows 11 IoT Enterprise
Dimensions and weight
Width
280 mm
Height
725 mm
Depth
180 mm
Operating Conditions
Operating Temperature
-40..60 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Vehicle
E-Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
5.8 kg
Gross Weight
6.8 kg
