VTC-6221

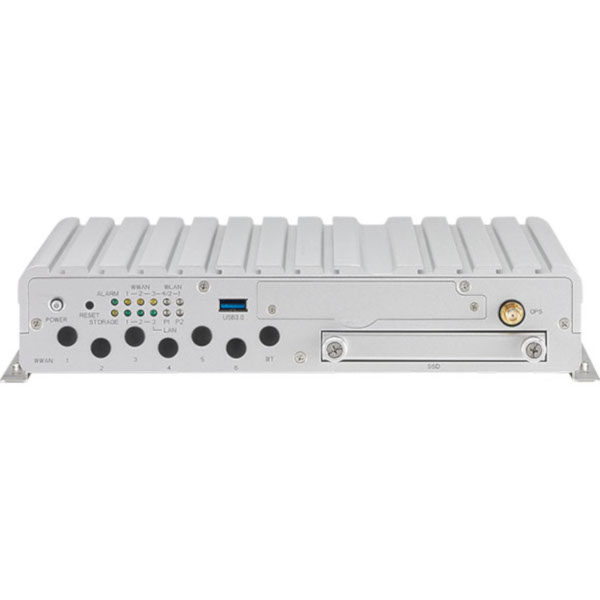

VTC-6221

NEXCOM
SKU: 56982100
Embedded Server Intel Atom E3950 up to 2.0GHz, 1x4 GB DDR3L SO-DIMM RAM, HDMI, 2xVGA, 8-bit DIO, 2xGb LAN, 2xCOM, 3xUSB, Audio, 2.5" Drive Bay, CFast, 3xMini-PCIe, M.2 (USB 3.0+USB 2.0), 9...48V DC input
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
Processor Installed
Intel Atom E3950
Max CPU frequency
2 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
4 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
2
RS-232
1
RS-232/485
1
USB Total
3
Digital Input-Output
GPIO
4xDigital In / 4xDigital Out
Industrial Interfaces
CAN Port
1
Drive interfaces
CFast Slots
1
Extension Slots
Total
4
M.2
2
Mini-PCIe/Mini Card
2
SIM Card slots
6
Additional Functions
GPS
GPS
Connectors
Connectors
DB15 VGA, HDMI, 2xRJ45 Ethernet, 3xUSB, DC input (terminal block)
System Power Input
Input Voltage DC
9..48 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
260 mm
Height
50 mm
Depth
196 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 516.6 Shock
Vehicle
E-Mark
Dimensions
Net Weight
2.1 kg
Gross Weight
3 kg
