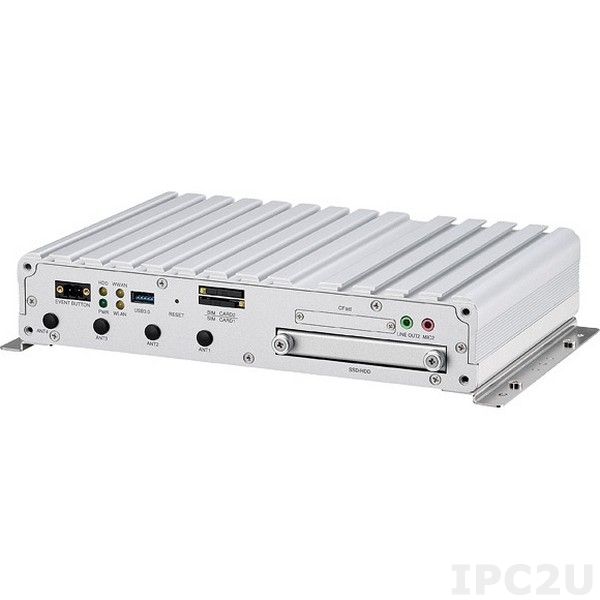

VTC-6210-BK
NEXCOM
SKU: 06534500
Embedded Server Intel Atom E3845 1.91GHz, 2GB DDR3L 1600 SO-DIMM RAM, w/VGA/DP, 2xGb LAN, 3xCOM, 1xUSB 3.0, 2xUSB 2.0, GPIO, Audio, GPS, 1x2.5" Drive Bay, CFast, 4xMini-PCIe, 9...36V DC input
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded
Type
Fanless
CPU
Processor Installed
Intel Atom E3845
Max CPU frequency
1.91 GHz
Memory
Form-factor
DDR3L
Default on Board Memory
2 GB
Maximum Memory
8 GB
Assembly
Removable
Ethernet
Total Ethernet
2
10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-422/485
1
USB Total
3
USB 2.0
2
USB v3.x
1
Digital Input-Output
Channels of DIO
8
GPIO
Yes
Drive interfaces
CFast Slots
1
Storage Cage
Number Of Cage External
1
2.5" Cage External
1
Extension Slots
Total
4
Mini-PCIe/Mini Card
4
SIM Card slots
2
Antenna characteristics
Cellular interfaces
3G (Optional)
Additional Functions
GPS
GPS
Connectors
Connectors
3xDB9, DB15 VGA, 2xRJ45 Ethernet, 3xUSB, Display Port, DC input (terminal block), 12V DC Output, GPIO (terminal block), DB9 Female, 2xLine Out, 2xMic In
System Power Input
Input Voltage DC
9..36 V
Power Consumption
19 W
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Fedora
Dimensions and weight
Width
260 mm
Height
50 mm
Depth
176 mm
Operating Conditions
Operating Temperature
-30..70 °C
Vibration
SSD: 2G @ 5...500 Hz; HDD: 1G @ 5...500 Hz
Shock
20G
Standards and Certifications
Certifications
CE, FCC Class B
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
2.1 kg
Gross Weight
3 kg
