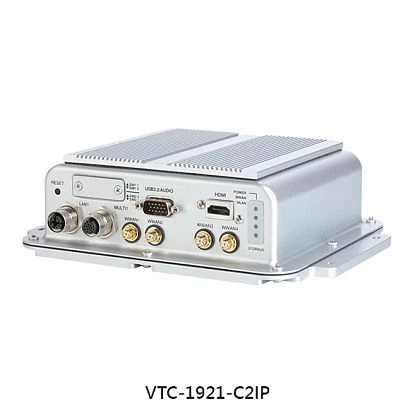

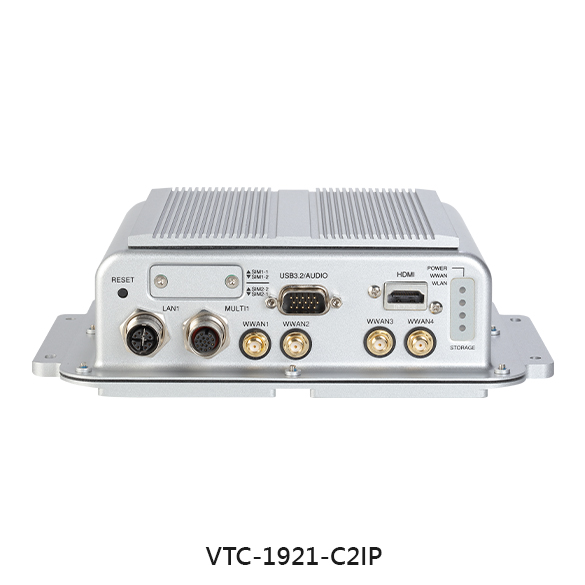

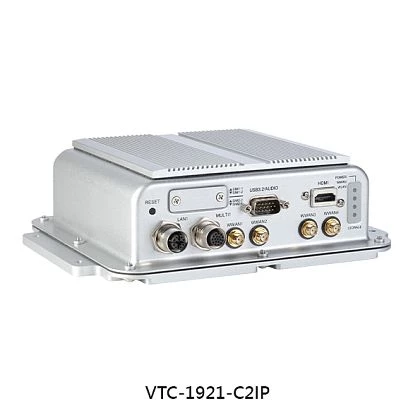

VTC-1921-C2IP
NEXCOM
SKU: 80073800
Vehicle IoT Gateway VTC-1921, IP67, Intel Atom x7211RE CPU, (Up to 32GB) 4GB DDR4 RAM, HDMI, 3xM12 (1xLAN, 2xPoE), 1xDB15 (USB 3.2, Audio), 2xM12 (3xCOM/DIO/2xCAN/USB 2.0), GPS, 1xMiniPCIe, 1xM.2 Key-M, 1xM.2 Key-B, 1xM.2 Key-E, 9-36VDC M12, -40..70C
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis, Rubber
Mounting Configuration
Desktop, Wall
Protection Level of Chassis
IP67
Type
Fanless
CPU
СPU Generation/Family
Amston Lake
Processor Installed
Intel Atom x7211RE
Socket
FCBGA1264
Max CPU frequency
3.2 GHz
Chipset
Chipset
Intel SoC
Memory
Form-factor
DDR4
Socket Type
1xSODIMM
ECC
No
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU
Interfaces
HDMI
Ethernet
Controller Type
Intel i226-IT
Total Ethernet
3
2,5 Gbit/s
1
PoE+ 10/100/1000 Mbit/s
2
Interfaces
COM Total
3
RS-232
2
RS-485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
Channels of DIO
8
Industrial Interfaces
CAN Port
2
Drive interfaces
M.2
1
mSATA
1
Extension Slots
Total
4
M.2
3
M.2 Form Factor
2280 M, 2230 E, 3052 B, 3042 B, 3050 B
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Nano SIM
Antenna characteristics
Cellular interfaces
4G (Optional)
Additional Functions
GPS
GPS, GLONASS
LED / Controls
LED
Power LED, WLAN LED, WWAN LED, SSD LED
Controls
1xReset
Connectors
Connectors
HDMI, M12 DC-in, M12 LAN, 2xM12 A-code Multi-port, DB15 (USB+Audio), 2xM12 PoE
System Power Input
Input Voltage DC
9..36 V
Power Supply
Supported Types of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
185 mm
Height
56.5 mm
Depth
167 mm
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
10-95%
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Rolling Stock
EN 50155, EN 45545-2
Automotive
e13 Mark
Vibration And Shock
IEC 60068-2-64
Dimensions
Net Weight
1.1 kg
Gross Weight
1.8 kg
