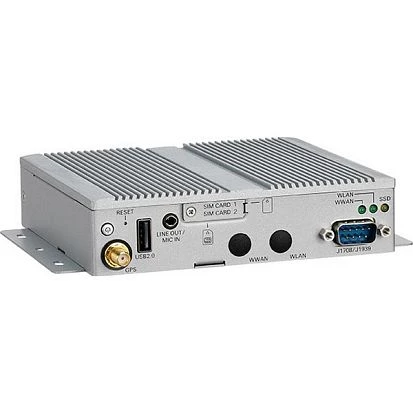

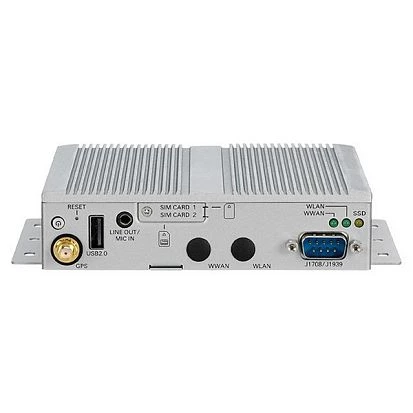

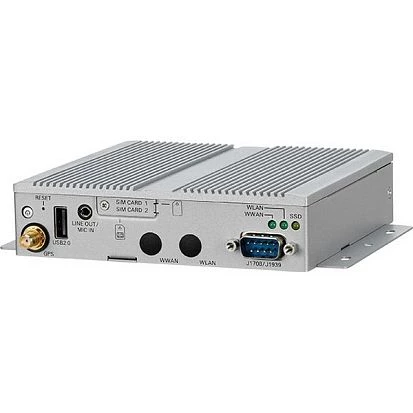

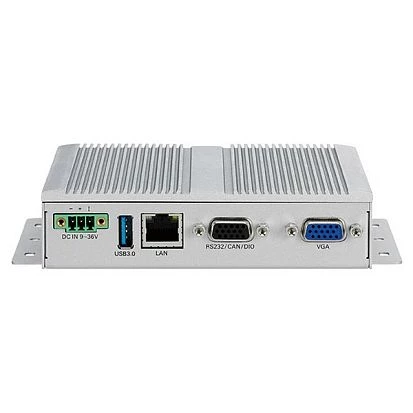

VTC-1910-S
NEXCOM
SKU: 07833100
Embedded server, Intel Atom E3815 1.46 GHz, 2GB DDR3L SO-DIMM 1066MHz/ 1333MHz, 1xmSATA, 1xSATA DOM, 1xVGA, 1xLAN, 2xRS-232, 1xRS-485, 1xCAN 2.0B, 2xUSB, 2xMini-PCIe, 2xSIM, 1xu-blox NEO-M8N, 9...36V DC input
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Type
Fanless
CPU
Processor Installed
Intel Atom E3815
Max CPU frequency
1.46 GHz
Memory
Form-factor
DDR3L
Socket Type
1xSODIMM
Default on Board Memory
2 GB
Maximum Memory
8 GB
Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
COM Total
3
RS-232
2
RS-485
1
USB Total
2
USB 2.0
1
USB v3.x
1
Digital Input-Output
Channels of DIO
6
Industrial Interfaces
CAN Port
2
Drive interfaces
mSATA
1
Extension Slots
Total
2
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
GPS
GPS
Connectors
Connectors
DB9, DB15 VGA, RJ45 Ethernet, 2xUSB, Mic In, Line Out, DC input (terminal block), DB15 (COM+GPIO)
System Power Input
Input Voltage DC
9..36 V
Software
Operating System Compatibility
Windows 7, Windows Embedded Standard 7, Windows 8, Windows Embedded Standard 8, Linux OS
Dimensions and weight
Width
130 mm
Height
32 mm
Depth
120 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
SSD: 1g @ 5~500 Hz
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
1.1 kg
Gross Weight
1.3 kg
