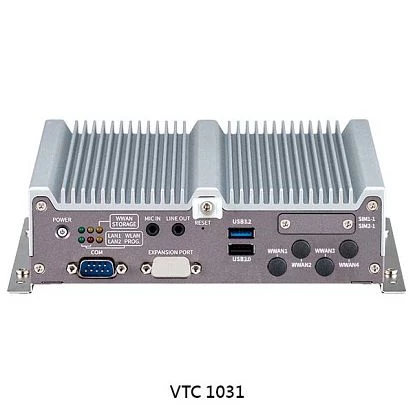

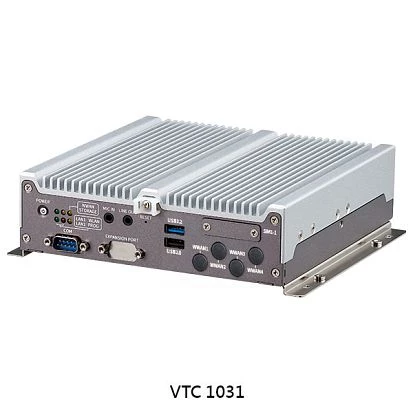

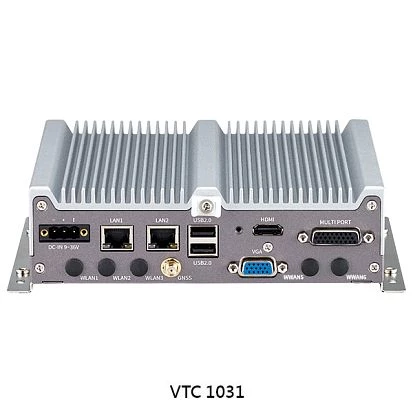

VTC-1031

VTC-1031

NEXCOM
SKU: 57540900
Mobile Embedded PC, Intel Atom x6413E 1.5GHz CPU, 4GB DDR4 RAM, 1xVGA, 1xHDMI, 1x2.5GbE LAN, 1xGbE LAN, 1xRS232/422/485, 1xMultiport (CAN/DIO/COM), 4xUSB, 1x2.5" Drive Bay, 1xMini-PCIe, 3xM.2, Audio, 9..36VDC-in Terminal Block, -40..70C Wide temp.
Price on request
Available
Available

Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Chipset
Chipset
Intel Atom SoC
Memory
Socket Type
1xSODIMM
ECC
Yes
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Marvell 88E1512 10/100/1000 Mbps, Intel i225IT
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
1
RS-485
2
RS-232/422/485
1
USB Total
4
USB 2.0
3
Digital Input-Output
Channels of DIO
9
Industrial Interfaces
CAN Port
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB26 Multi-I/O Connector, 2xSIM Card Slot
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
180 mm
Operating Conditions
Vibration
Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure. Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
Shock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g. Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Vehicle
E-Mark
Dimensions
Net Weight
1.91 kg
Gross Weight
2.8 kg
Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Chipset
Chipset
Intel Atom SoC
Memory
Socket Type
1xSODIMM
ECC
Yes
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Marvell 88E1512 10/100/1000 Mbps, Intel i225IT
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
1
RS-485
2
RS-232/422/485
1
USB Total
4
USB 2.0
3
Digital Input-Output
Channels of DIO
9
Industrial Interfaces
CAN Port
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB26 Multi-I/O Connector, 2xSIM Card Slot
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
180 mm
Operating Conditions
Vibration
Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure. Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
Shock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g. Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Vehicle
E-Mark
Dimensions
Net Weight
1.91 kg
Gross Weight
2.8 kg
Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Chipset
Chipset
Intel Atom SoC
Memory
Socket Type
1xSODIMM
ECC
Yes
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Marvell 88E1512 10/100/1000 Mbps, Intel i225IT
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
1
RS-485
2
RS-232/422/485
1
USB Total
4
USB 2.0
3
Digital Input-Output
Channels of DIO
9
Industrial Interfaces
CAN Port
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB26 Multi-I/O Connector, 2xSIM Card Slot
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
180 mm
Operating Conditions
Vibration
Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure. Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
Shock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g. Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Vehicle
E-Mark
Dimensions
Net Weight
1.91 kg
Gross Weight
2.8 kg
Construction
Construction Chassis
Aluminium Chassis
Type
Fanless
CPU
СPU Generation/Family
Elkhart Lake
Processor Installed
Atom x6413E
Socket
FCBGA1493
Chipset
Chipset
Intel Atom SoC
Memory
Socket Type
1xSODIMM
ECC
Yes
Default on Board Memory
4 GB
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Integrated in CPU, Intel UHD Graphics
Ethernet
Controller Type
Marvell 88E1512 10/100/1000 Mbps, Intel i225IT
Total Ethernet
2
10/100/1000 Mbit/s
1
2,5 Gbit/s
1
Wi-Fi
Wi-Fi Standard
Yes
Interfaces
COM Total
4
RS-232
1
RS-485
2
RS-232/422/485
1
USB Total
4
USB 2.0
3
Digital Input-Output
Channels of DIO
9
Industrial Interfaces
CAN Port
1
Storage Cage
2.5" Cage Intenal
1
Extension Slots
Total
2
M.2
2
Mini-PCIe/Mini Card
1
Connectors
Connectors
DB9, DB15 VGA, HDMI, 2xRJ45 Ethernet, 4xUSB, Mic In, Line Out, DC input (terminal block), DB26 Multi-I/O Connector, 2xSIM Card Slot
Power Supply
Type of Power Supply
External power adapter AC/DC
Software
Operating System Compatibility
Linux OS, Windows 10, Windows 11
Dimensions and weight
Width
180 mm
Height
50 mm
Depth
180 mm
Operating Conditions
Vibration
Operating: MIL-STD-810H, Method 514.8C, Procedure 1, Category 4, common carrier US highway truck vibration exposure. Storage: MIL-STD-810H, Method 514.8E, Procedure 1, Category 24, minimum integrity test
Shock
Operating: MIL-STD-810H, Method 516.8, Procedure I, functional shock=40g. Non-operating: MIL-STD-810H, Method 516.8, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810H Test Method 516.8 Shock, MIL-STD-810H Test Method 514.8 Vibration
Automotive
e13 Mark
Vehicle
E-Mark
Dimensions
Net Weight
1.91 kg
Gross Weight
2.8 kg

Documentation
User-Manual-VTC1031-nROK1031-Series-230103.pdf VTC-10311031-2-Datasheet.pdf
Documentation
User-Manual-VTC1031-nROK1031-Series-230103.pdf VTC-10311031-2-Datasheet.pdf
Documentation
User-Manual-VTC1031-nROK1031-Series-230103.pdf VTC-10311031-2-Datasheet.pdf
Documentation
User-Manual-VTC1031-nROK1031-Series-230103.pdf VTC-10311031-2-Datasheet.pdf
