VSX-6101-V2

VSX-6101-V2

SKU: 05346300

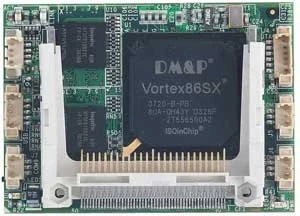

2.5" Vortex86SX 300MHz SoC Tiny Board with 128MB DDR2 RAM, LAN, 3xRS-232, 1xUSB

Price on request

System Architecture

Form Factor

uProcessor CPU Module

Construction

Type

Fanless

CPU

Processor Installed

Vortex86SX

Max CPU frequency

0.3 GHz

Chipset

Chipset

Vortex86 System-on-Chip

Memory

Form-factor

DDR2

Default on Board Memory

0.13 GB

Maximum Memory

0.25 GB

Assembly

Fixed on Board

Ethernet

Total Ethernet

1

10/100 Mbit/s

1

Interfaces

COM Total

4

RS-232

4

USB Total

3

USB 2.0

3

Drive interfaces

CompactFlash Slots

1

Additional Functions

Watchdog timer type

Software

Connectors

Internal Ports

4-pin USB 2.0, 6-pin JTAG, 4-pin KBD, 3x3-pin RS-232

Dimensions and weight

Width

46 mm

Length

90 mm

Operating Conditions

Operating Temperature

-20..70 °C

Dimensions

Net Weight

0.5 kg

Gross Weight

0.5 kg

Documentation

Get a Quote

SKU: 05346300

VSX-6101-V2
