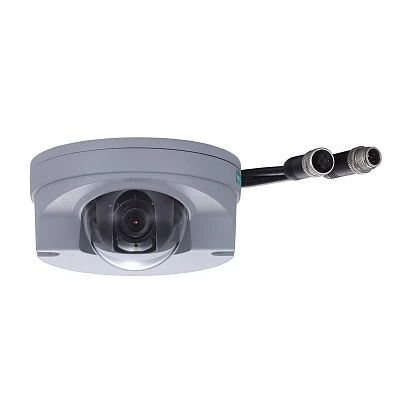

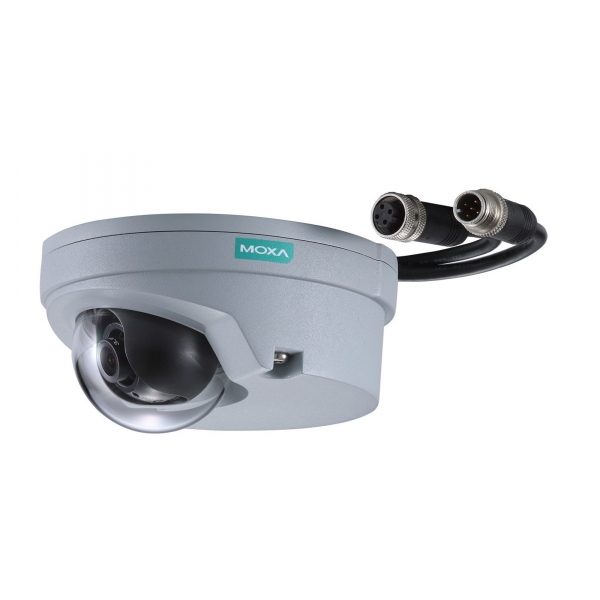

VPort P06-2L36M-CT-T

VPort P06-2L36M-CT-T

MOXA
SKU: 06999600
EN50155,FHD,H.264/MJPEG IP camera,M12 connector,1 audio input,PoE , 3.6mm Lens,-40 to 70C, coating
Price on request
Available on order
Available on order
Camera
Form Factor
Mini
Video Analytics Functions
Motion Detection, Camera Tamper
Max Resolution Frame rate
30 fps
Supported Protocols
Managment Protocols
SMTP, SNMPv1/v2c/v3, HTTP, UDP, DNS, TCP/IP, QoS, DHCP, NTP, DDNS, TFTP, ARP, IGMPv1/v2/v3, ICMP
Reservation protocols
RSTP
Security Protocols
HTTPS, SSH, IP Address Filtering, IEEE 802.1X Network Access Control, Password Protection
Digital Input
Total channels of digital input
1
Connectors
Connectors
4-pin M12 D-code female, 5-pin M12 male
System Power Input
Power over Ethernet (PoE)
PoE
Power Consumption
8.1 W
Dimensions and weight
Width
110 mm
Depth
115.5 mm
Height
61.8 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Certifications
CE, FCC
EMI
EN 55022 Class A, FCC Part 15
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11
Freefall
IEC 60068-2-32
Rolling Stock
EN 50155
Safety
UL 60950-1
Vandal Resistance
EN 62262, IK08 level
Vibration And Shock
IEC 61373
Dimensions
Net Weight
0.62 kg
Gross Weight
0.9 kg
