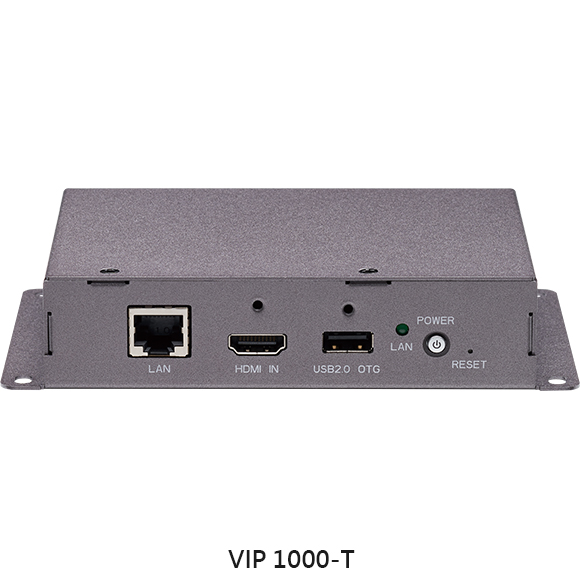

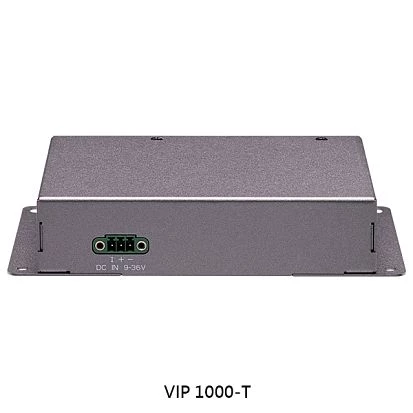

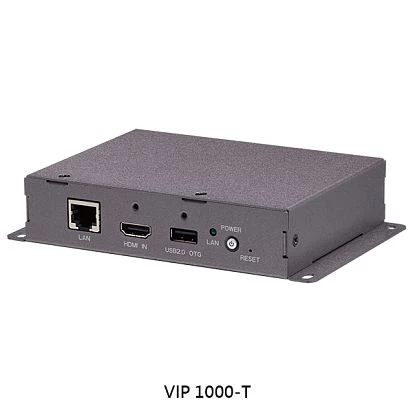

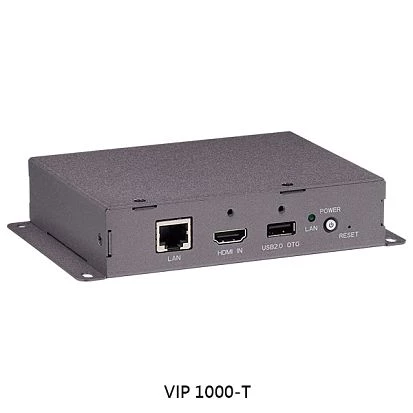

VIP-1000-T

VIP-1000-T

NEXCOM
SKU: 57418900
HDMI extender over IP, Transmitter variation, 1xHDMI Type A, 1xGbE, 1xUSB 2.0 OTG, E13 mark, Phoenix connector 9..36V DC-in, 0..70C Operating temp.
Price on request
Available
Available

Ethernet
Total Ethernet
1
10/100/1000 Mbit/s
1
Interfaces
USB Total
1
USB 2.0
1
Connectors
Connectors
HDMI
System Power Input
Input Voltage DC
9..36 V
Dimensions and weight
Width
130 mm
Height
31 mm
Depth
100 mm
Operating Conditions
Operating Temperature
0..70 °C
Vibration
Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure - Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
Shock
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=40g - Non-operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard shock test=75g
Standards and Certifications
Certifications
CE, FCC Class A
MIL-STD-810
MIL-STD-810G Test Method 514.6 Vibration, MIL-STD-810G Test Method 516.6 Shock
Automotive
e13 Mark
Dimensions
Net Weight
0.5 kg
Gross Weight
1.5 kg
