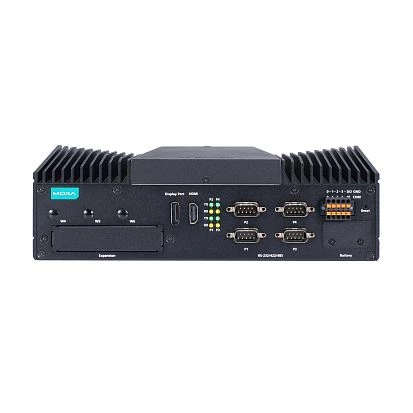

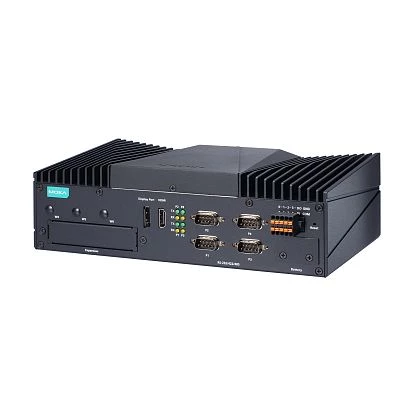

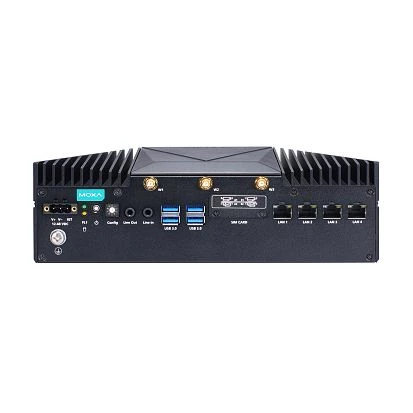

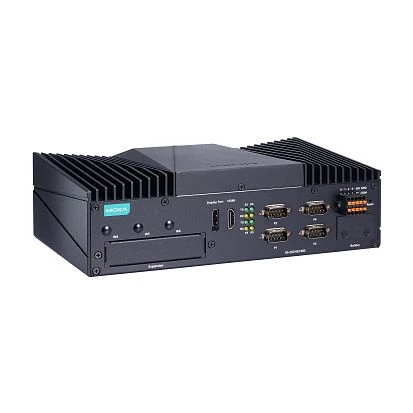

V2403C-KL1-T
MOXA
SKU: 09903800
x86 embedded computer with Intel Celeron 3965U 2.2GHz, DDR4, HDMI/DP, 4xGbE LAN, 4xCOM, 4xUSB 3.0, 4DI/4DO, mSATA, 2x2.5" SSD/HDD, 2x mPCIe, SMA, 12-48VDC, -40...70C
Price on request
Available
Available
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Wall
Protection Level of Chassis
IP20
Type
Fanless
CPU
Processor Installed
Intel Celeron 3965U
Max CPU frequency
2.2 GHz
Memory
Form-factor
DDR4
Maximum Memory
32 GB
Assembly
Removable
Graphic
Graphic Controller
Intel HD Graphics 620
Ethernet
10/100/1000 Mbit/s
2
Interfaces
COM Total
4
RS-232/422/485
4
USB Total
4
USB v3.x
4
Digital Input-Output
Isolation DIO
Yes
Drive interfaces
mSATA
1
Storage Cage
Number Of Cage External
2
2.5" Cage Intenal
2
Extension Slots
Mini-PCIe/Mini Card
1
Connectors
Connectors
4xDB9, DB15 VGA, HDMI, 3xUSB, Line In, Line Out, 2xM12
System Power Input
Input Voltage DC
24 V
Power Consumption
70 W
Software
Operating System Compatibility
Linux OS, Windows 10 IoT Enterprise
Dimensions and weight
Width
250 mm
Height
75 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-40..70 °C
Standards and Certifications
Rolling Stock
EN 50121-4, EN 50155, EN 50121-3-2, EN 45545-2
Safety
EN 62368-1 (LVD), UL 62368-1, IEC 62368-1
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64, IEC 61373
Dimensions
Net Weight
2.5 kg
Gross Weight
3 kg
