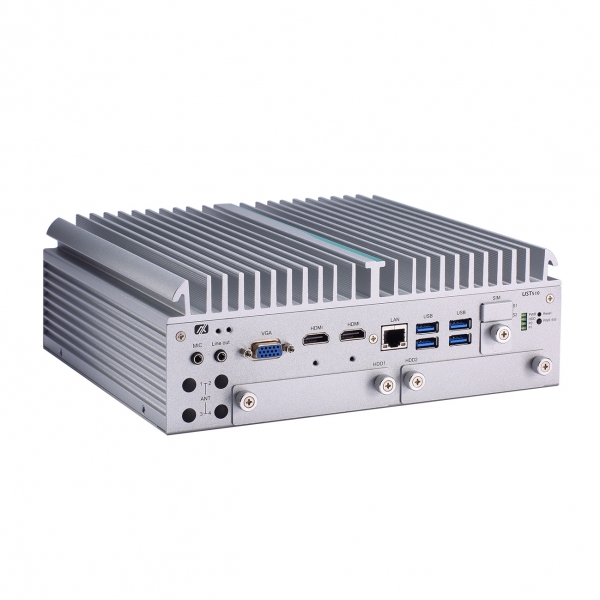

UST510-52B-FL-8RJ-2SATA

UST510-52B-FL-8RJ-2SATA

AXIOMTEK
SKU: 09490600
Fanless embedded system, Intel Celeron, Pentium, Xeon, Core i3/i5/i7 9/8th Gen desktop, LGA1151, C246, VGA, 2xHDMI, 6-in/2-out DIO, 2xCOM, 4xUSB 3.0, 8xPoE Gbit LAN RJ45, 2xSATA drive, power DC 9-36 V or ACC ignition 24 V DC
Price on request
Available
Available

Construction
Construction Chassis
Metal Chassis, Aluminium Chassis
Mounting Configuration
Embedded, Wall
Protection Level of Chassis
IP40
Type
Fanless
CPU
СPU Generation/Family
Coffee Lake, Coffee Lake Refresh
Socket
LGA1151
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium, Xeon
Memory
Form-factor
DDR4
Ethernet
Controller Type
Intel i211-AT 10/100/1000 Mbps
10/100/1000 Mbit/s
1
Interfaces
USB Total
4
USB v3.x
4
Digital Input-Output
Isolation DIO
Yes
Drive interfaces
mSATA
1
Extension Slots
M.2
2
Mini-PCIe/Mini Card
2
SIM Card slots
2
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
DB15 VGA, 2xHDMI, Mic In, Line Out, DC input (terminal block), 2xSIM Card Slot, 9xRJ45 Ethernet
System Power Input
Input Voltage DC
9 V
Software
Operating System Compatibility
Linux OS, Windows 10
Dimensions and weight
Width
281 mm
Height
82.2 mm
Depth
207 mm
Operating Conditions
Operating Temperature
-40..70 °C
Vibration
3 Grms w/ SSD (5 ~ 500 Hz, X/Y/Z direction; random)
Standards and Certifications
Certifications
CE, CE/FCC, FCC Class A
Vehicle
E-Mark
Dimensions
Net Weight
4.92 kg
Gross Weight
5.18 kg

Documentation
Datasheet UST510-52B-FL
