UST100-504-FL-TDC

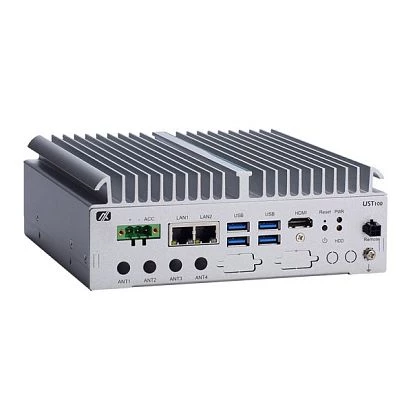

UST100-504-FL-TDC

AXIOMTEK
SKU: 08616200
Fanless embedded system, Intel Celeron, Pentium Core i3/i5/i7 6/7th Gen desktop, LGA1151, H110, 1x DDR4 SO-DIMM, HDMI, 4-in/4-out DIO, 1x COM, 4x USB 3.0, 2x LAN, 1x 2.5" SATA, VDC 12-24V with ACC ignition
Price on request
Available
Available

CPU
Price with VAT
Price on request
Price on request
HDD/SSD
Price on request
Price on request
Cable Set 1
Price on request
Price on request
CPU
Price with VAT
Price on request
Price on request
HDD/SSD
Price on request
Price on request
Cable Set 1
Price on request
Price on request

Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
Embedded, Wall
Protection Level of Chassis
IP30
Type
Fanless
CPU
СPU Generation/Family
Kaby Lake
CPU Support Type
Core i3, Core i5, Celeron, Core i7, Pentium
Memory
Form-factor
DDR4
Maximum Memory
16 GB
Interfaces
COM Total
1
RS-232/422/485
1
USB Total
4
USB v3.x
4
Drive interfaces
mSATA
1
Storage Cage
2.5" Cage External
4
Extension Slots
Mini-PCIe/Mini Card
1
SIM Card slots
Yes, 2, Full size Sim-card
Additional Functions
Watchdog timer type
Software
Connectors
Connectors
HDMI, 2xRJ45 Ethernet, 4xUSB, DC Input
System Power Input
Input Voltage DC
12 V
Software
Operating System Compatibility
Windows 7, Ubuntu, Windows 10
Dimensions and weight
Width
185 mm
Height
65.15 mm
Depth
150 mm
Operating Conditions
Operating Temperature
-40..60 °C
Vibration
3 Grms w/ SSD (5 ~ 500 Hz, X/Y/Z direction; random)
Standards and Certifications
Certifications
CE, FCC
Rolling Stock
EN 50155
Vehicle
E-Mark
Dimensions
Net Weight
1.71 kg
Gross Weight
2.24 kg
Construction
