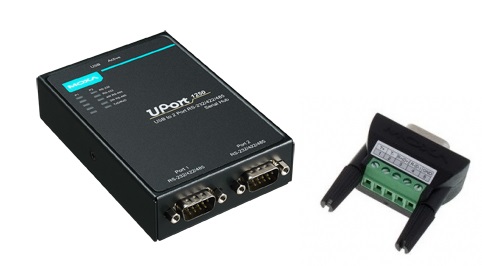

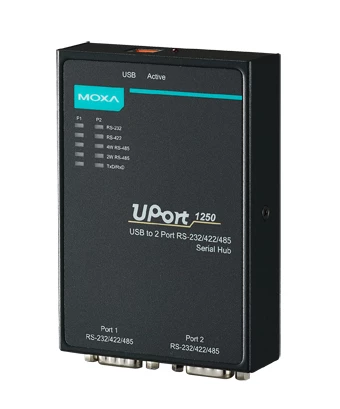

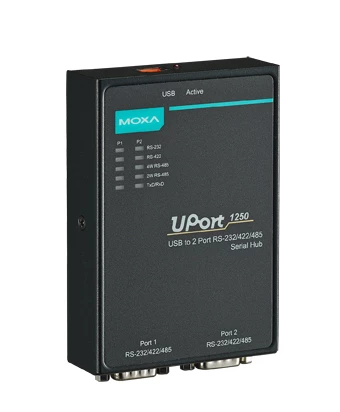

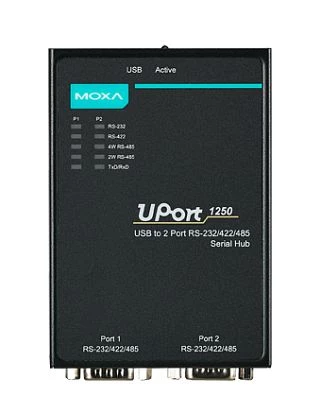

UPort 1250

MOXA
SKU: 03563400
USB to 2-port RS-232/422/485 Serial HUB
Price on request
Available
Available

Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
77 mm
Depth
111 mm
Height
26 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.16 kg
Gross Weight
0.39 kg
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
77 mm
Depth
111 mm
Height
26 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.16 kg
Gross Weight
0.39 kg
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
77 mm
Depth
111 mm
Height
26 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.16 kg
Gross Weight
0.39 kg
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
0..55 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
Desktop
Dimensions and weight
Width
77 mm
Depth
111 mm
Height
26 mm
Standards and Certifications
EMI
FCC Part 15 Subpart B Class A, CISPR 32
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Safety
UL 60950-1
Dimensions
Net Weight
0.16 kg
Gross Weight
0.39 kg

Documentation
UPort 1200 1400 1600 Datasheet Uport 1200 1400 1600 User's Manual QIG UPort-1200-1400-1600
Software
Drivers
Documentation
UPort 1200 1400 1600 Datasheet Uport 1200 1400 1600 User's Manual QIG UPort-1200-1400-1600
Software
Drivers
Documentation
UPort 1200 1400 1600 Datasheet Uport 1200 1400 1600 User's Manual QIG UPort-1200-1400-1600
Software
Drivers
Documentation
UPort 1200 1400 1600 Datasheet Uport 1200 1400 1600 User's Manual QIG UPort-1200-1400-1600
Software
Drivers
