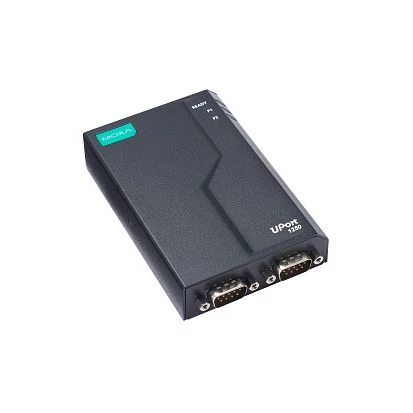

UPort 1250I-G2-T

MOXA
SKU: 11033700
USB to 2-port RS-232/422/485 Serial HUB, Optical Isolation Protection, -40...+75C
Price on request
Available on order
Available on order
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP20
Dimensions and weight
Width
75.8 mm
Depth
25 mm
Height
111 mm
Standards and Certifications
EMI
CISPR 32, fcc_part_15b_class_a
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-31
Safety
EN 62368, UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.16 kg
Gross Weight
0.62 kg
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP20
Dimensions and weight
Width
75.8 mm
Depth
25 mm
Height
111 mm
Standards and Certifications
EMI
CISPR 32, fcc_part_15b_class_a
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-31
Safety
EN 62368, UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.16 kg
Gross Weight
0.62 kg
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP20
Dimensions and weight
Width
75.8 mm
Depth
25 mm
Height
111 mm
Standards and Certifications
EMI
CISPR 32, fcc_part_15b_class_a
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-31
Safety
EN 62368, UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.16 kg
Gross Weight
0.62 kg
Interfaces
COM Total
2
RS-232/422/485
2
Isolation of COM Ports
2 kV (RS-232/422/485)
USB Total
1
System Power Input
Input Voltage DC
5..5 V
Operating Conditions
Operating Temperature
-40..75 °C
Humidity
5-95%
Construction
Construction Chassis
Metal Chassis
Protection Level of Chassis
IP20
Dimensions and weight
Width
75.8 mm
Depth
25 mm
Height
111 mm
Standards and Certifications
EMI
CISPR 32, fcc_part_15b_class_a
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Freefall
IEC 60068-2-31
Safety
EN 62368, UL 62368-1
Vibration And Shock
IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.16 kg
Gross Weight
0.62 kg
MOXA UPort 1250-G2 USB to 2-port RS-232/422/485 Serial HUB, 0...+60C
MOXA UPort 1250I-G2 USB to 2-port RS-232/422/485 Serial HUB, Optical Isolation Protection, 0...+60C
MOXA UPort 1250-G2-T USB to 2-port RS-232/422/485 Serial HUB, -40...+75C
