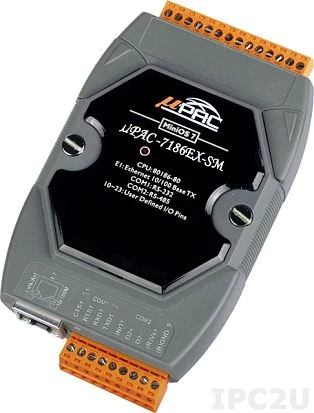

uPAC-7186EX-SM

uPAC-7186EX-SM

ICP DAS
SKU: 05212400
PC-compatible 80MHz Industrial Controller, 512kb Flash, 640kb SRAM, 2xRS232/485, Ethernet, MiniOS7
Price on request
Available on order
Available on order
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount
CPU
Processor Installed
80186
Max CPU frequency
0.08 GHz
Memory
SRAM
512 kB
Installed drive
Flash Memory Capacity
0.512 MB
EEPROM Memory Capacity
16 kB
Non-volatile NVRAM memory capacity
31 Byte
Expansion Module
Quantity of Slots
1
Supported Module
X - board
Software
Operating System Installed
Mini OS7
Programming Method
C/C++
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
2
RS-232
1
RS-485
1
Additional Functions
Watchdog timer type
Hardware
Dimensions and weight
Width
72 mm
Depth
123 mm
Height
35 mm
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
