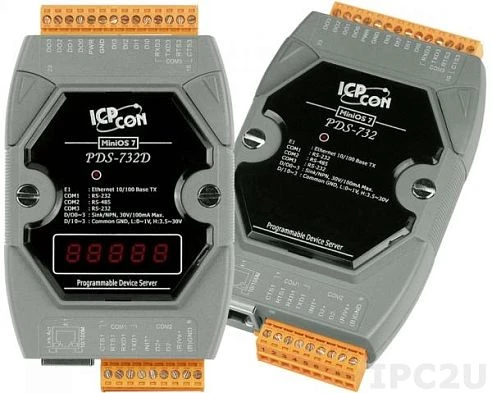

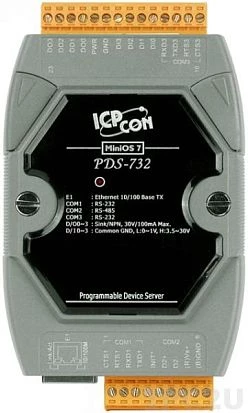

PDS-732
ICP DAS
SKU: 05141400
Programmable Device Server, 2xRS-232, 1xRS-485, 4xDI/4xDO, RoHS
Price on request
Available
Available
Ethernet
10/100 Mbit/s
1
Interfaces
COM Total
3
RS-232
2
RS-485
1
Digital Input
Total channels of digital input
4
Level of Logic "1"
3.5~30 V
Level of Logic "0"
0~1 V
Type
Wet contact
Digital Output
Total channels of digital output
4
Type
Open collector
Output voltage
5~30 V
Max. load current
100 mA
Connectors
Connectors
Screw Terminal
System Power Input
Input Voltage DC
10..30 V
Operating Conditions
Operating Temperature
-25..75 °C
Construction
Construction Chassis
Plastic Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
72 mm
Depth
35 mm
Height
123 mm
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
