Industrial Communications

Protocol Gateways

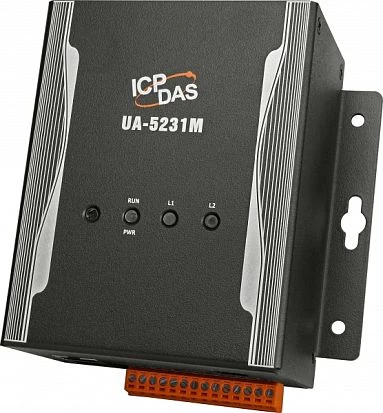

UA-5231M

UA-5231M

SKU: 07701200

IoT Communication Server, with ARM 1 GHz, 512Mb DDR3, 512Mb Flash, 1xEthernet, Linux, Metal

Price on request

Ethernet

Total Ethernet

1

10/100/1000 Mbit/s

1

Interfaces

COM Total

4

RS-232

2

RS-485

2

Isolation of COM Ports

2.5 kV (RS-485)

USB Total

1

Supported Protocols

Industrial Protocols

Modbus TCP client, Modbus RTU master, MQTT client, MQTT broker, MQTT

System Power Input

Input Voltage DC

12..48 V

Operating Conditions

Operating Temperature

-25..75 °C

Construction

Construction Chassis

Metal Chassis

Mounting Configuration

DIN-Rail mount

Dimensions and weight

Width

117 mm

Depth

126 mm

Height

58 mm

Dimensions

Net Weight

0.2 kg

Gross Weight

0.35 kg
