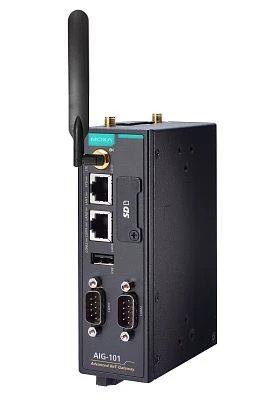

AIG-101-T-EU
MOXA
SKU: 10075500
2-port Modbus RTU/ASCII/TCP to MQTT/Azure/AWS cloud-ready gateway, LTE Cat. 1 module for the EU region, 9-36VDC-in, -40...70C
Price on request
Available
Available
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
COM Total
2
RS-232/422/485
2
USB Total
1
Antenna characteristics
Cellular interfaces
4G
Additional Functions
GPS
GPS, GLONASS
Operating Conditions
Operating Temperature
-40..70 °C
Humidity
5-95%
MTBF
566458 h
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount
Dimensions and weight
Width
41 mm
Depth
89.1 mm
Height
128.5 mm
Standards and Certifications
EMI
CISPR 32, fcc_part_15_class_b
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Radio
FCC, PTCRB, rcm
Safety
UL 62368-1, IEC 62368-1, en_62368_1
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64
Dimensions
Net Weight
0.5 kg
Gross Weight
0.7 kg
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Interfaces
