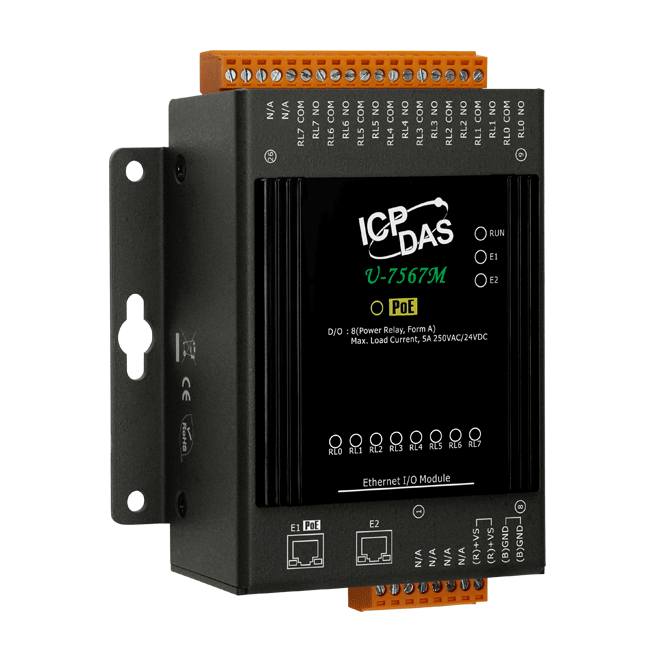

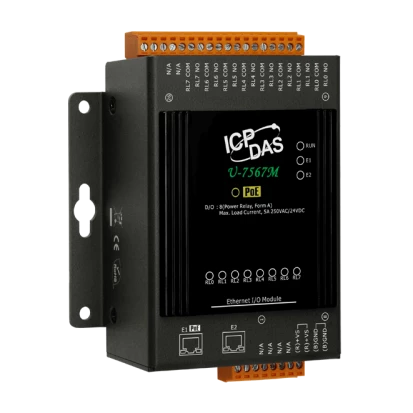

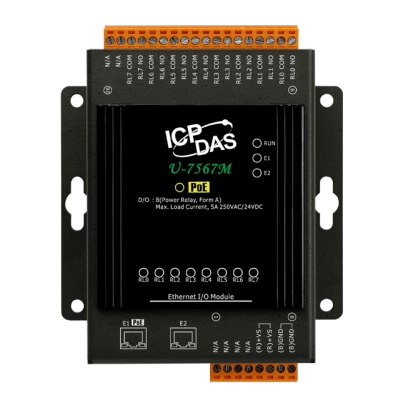

U-7567M
ICP DAS
SKU: 11321500
OPC UA I/O Module with 8-channels Power Relay 5A@250VAC/24 VDC and 2-port Ethernet Switch, 12-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
OPC UA client, OPC UA server, MQTT, RESTful API
Digital Output
Total channels of digital output
8
Type
Electromagnitic relay
Relay (Form A)
8
Contact rating of relay (Form A)
5A@250V AC, 5A@24V DC
Software
Programming Method
IF-THEN-ELSE Logic Rules
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Dimensions and weight
Width
97 mm
Depth
47 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC, rohs
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
