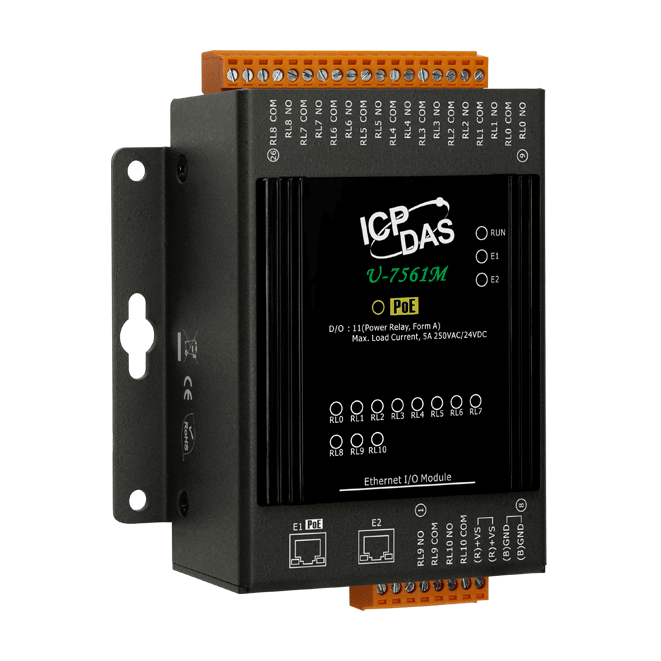

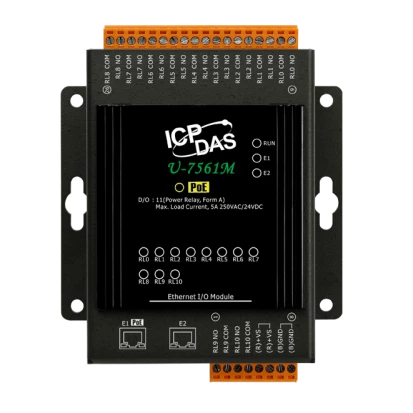

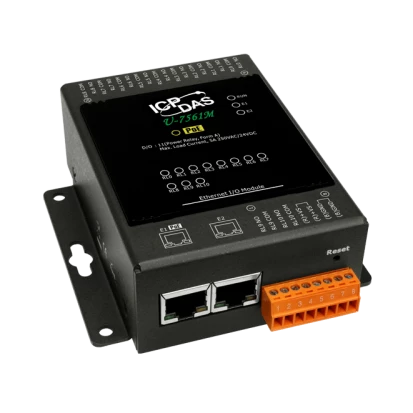

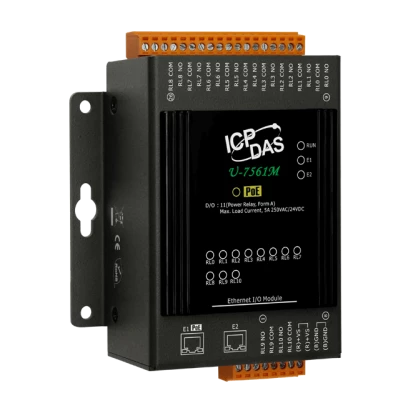

U-7561M
ICP DAS
SKU: 11321400
OPC UA I/O Module with 11-channels Power Relay 5A@250VAC/24 VDC and 2-port Ethernet Switch, 12-48VDC-in
Price on request
Available
Available
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Ethernet
Total Ethernet
2
10/100 Mbit/s
2
Supported Protocols
Industrial Protocols
OPC UA client, OPC UA server, MQTT, RESTful API
Digital Output
Total channels of digital output
11
Type
Electromagnitic relay
Relay (Form A)
11
Contact rating of relay (Form A)
5A@250V AC, 5A@24V DC
Software
Programming Method
IF-THEN-ELSE Logic Rules
System Power Input
Input Voltage DC
12..48 V
Power over Ethernet (PoE)
IEEE 802.3af, PoE
Dimensions and weight
Width
97 mm
Depth
47 mm
Height
120 mm
Operating Conditions
Operating Temperature
-25..75 °C
Humidity
10-90%
Standards and Certifications
Certifications
CE/FCC, rohs
EMS
IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5
Dimensions
Net Weight
0.2 kg
Gross Weight
0.35 kg
