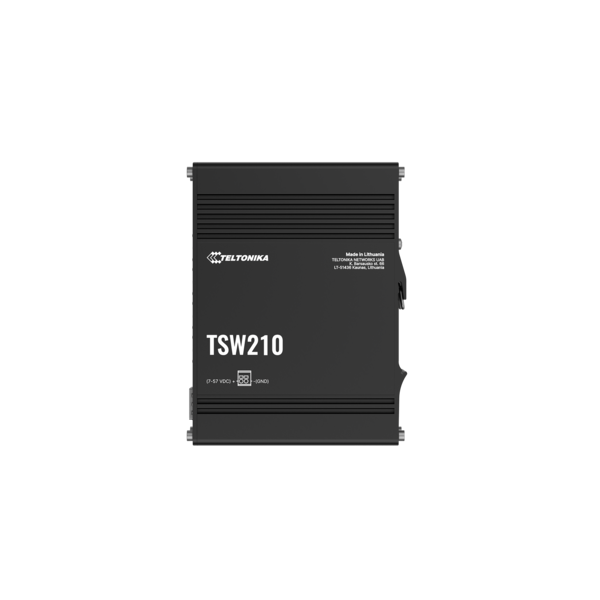

TSW210
Teltonika Networks
SKU: 10440400
Industrial Unmanaged Ethernet Switch, 8x10/100/1000 Mbps, 2xSFP, 7..57 VDC, Operating temperature -40..75 C
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100/1000 Mbit/s
8
SFP 100/1000 Mbit/s Ports
2
Switch Properties
MAC Table Size
2000
Jumbo Frame Size
9.2 kB
Supported Protocols
Industrial Protocols
PROFINET
IEEE Standard
ieee_802.3i, IEEE 802.1P for Class of Service, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3x for Flow Control, IEEE 802.3az for Energy-Efficient Ethernet, IEEE 802.3u for 100BaseT(X)
System Power Input
Input Voltage DC
7..57 V
Construction
Construction Chassis
Aluminium Chassis
Mounting Configuration
DIN-Rail mount, Wall
Protection Level of Chassis
IP30
Dimensions and weight
Width
132 mm
Depth
44.2 mm
Height
95.1 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
Certifications
CE, FCC, CB
EMI
EN 61000-3-2, EN 61000-3-3
EMS
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11, EN 55032, EN 55035
Safety
IEC 62368-1
Dimensions
Net Weight
0.5 kg
Gross Weight
1 kg
