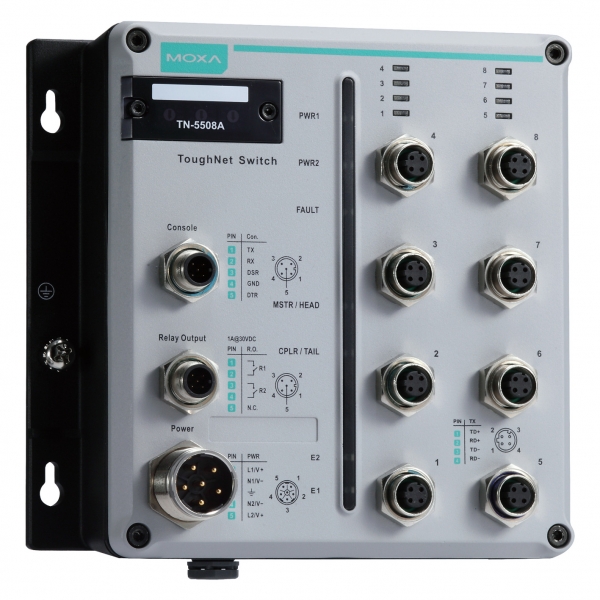

TN-5508A-WV-T
MOXA
SKU: 06611300
L2 managed switch with 8 10/100BaseT(X) M12 Ports, dual power input, 24 to 110 VDC, -40 to 75 operating temperature
Price on request
Available
Available
Ethernet
Total Ethernet
8
10/100 Mbit/s
8
Type 10/100 Mbit/s
8xM12
Switch Properties
Managed
Yes
Switch Level
Layer 2
Supported technologies
Dynamic Ring Coupling (DRC)
Supported functions
Port Mirror, Port Lock, Rate Limit, Loop Protection, Broadcast Storm Protection, Link Aggregation, Port-Based VLAN, Automatic power failure notification, Automatic port failure notification, Flow Control, Back pressure flow control, Access Control Lists, Line-Swap Fast Recovery, Supports network management system
Max. Number of VLANs
64
IGMP Groups
256
Supported Protocols
Industrial Protocols
EtherNet/IP, Modbus TCP
Managment Protocols
DHCP Server/Client, SMTP, SNMPv1/v2c/v3, HTTP, LLDP, Syslog, Telnet, QoS, SNTP, GVRP, RMON, TFTP, BootP, IEEE 1588 PTP V2 (software based), IGMPv1/v2/v3, DHCP Option 66/67/82, NTP Server/Client, SNMP Inform, GMRP, RARP
Reservation protocols
MSTP, STP, Turbo Ring, Turbo Chain, Turbo Ring with DRC, RSTP
Security Protocols
HTTPS, SSH, RADIUS, SSL, TACACS+
IEEE Standard
IEEE 802.1D-2004 for Spanning Tree Protocol, IEEE 802.1P for Class of Service, IEEE 802.1Q for VLAN Tagging, IEEE 802.1S for Multiple Spanning Tree Protocol, IEEE 802.1W for Rapid Spanning Tree Protocol, IEEE 802.1X for Authentication, IEEE 802.3 for 10BaseT, IEEE 802.3ab for 1000BaseT(X), IEEE 802.3ad for Port Trunk with LACP, IEEE 802.3af/at for Power-over-Ethernet, IEEE 802.3x for Flow Control, IEEE 802.3u for 100BaseT(X)
Digital Output
Total channels of digital output
2
Type
Signal Relay
Contact rating of relay (Form A)
1A@30V DC
LED / Controls
Setup of Operation Mode
Telnet, Console Port, Web-interface, Command Line Interface (CLI), Through MXconfig Utility
Connectors
Connectors
Console Port M12
System Power Input
Redundant power input
Yes
Input Voltage DC
16..137 V
Power Supply Reserve input Voltage DC
16..137 V
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Panel
Protection Level of Chassis
IP54
Dimensions and weight
Width
185 mm
Depth
76 mm
Height
175.8 mm
Operating Conditions
Operating Temperature
-40..75 °C
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 55024, EN 55032
Rolling Stock
EN 50121-4, EN 50155, IEC 60571, EN 45545-2
Safety
IEC 60950-1, UL 61010-2-201
Freefall
IEC 60068-2-31
Vibration And Shock
IEC 60068-2-27, IEC 60068-2-64, IEC 61373
Dimensions
Net Weight
0.5 kg
Gross Weight
2.61 kg
