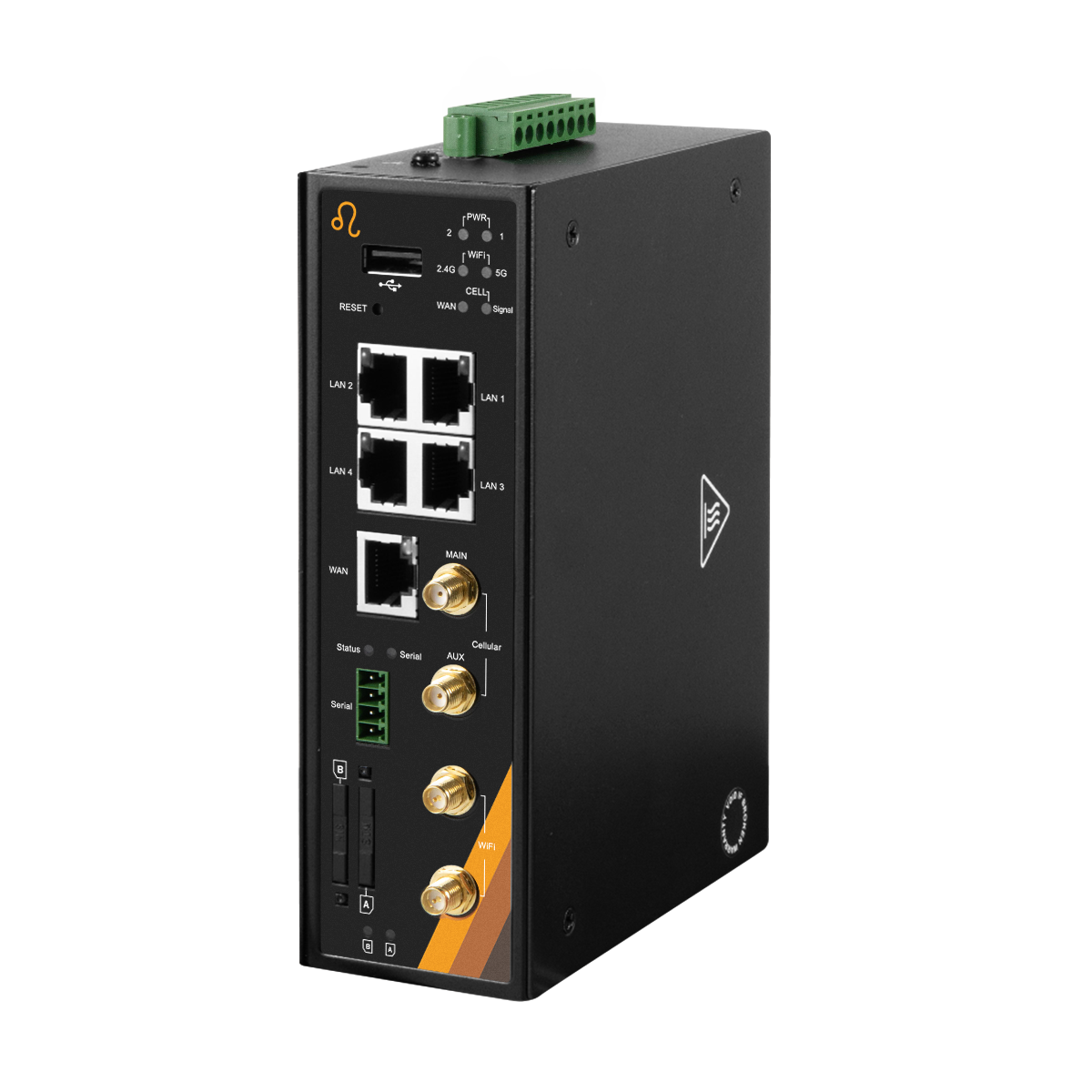

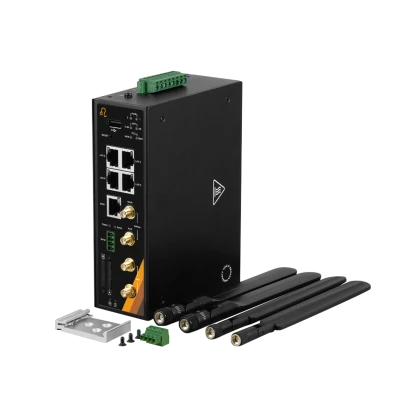

TLE3-71300-5120-T

TLE3-71300-5120-T

Leonton
SKU: 80121300
Industrial Cellular IoT Gateway, IP30, 4x10/100/1000Base-T RJ45, 1xCOM, 1xUSB, Dual SIM, 1xDI, 1xDO, 4xSMA, Dual 12..48VDC, Operating Temperature -30..70 C
Price on request
Available
Available

Ethernet
Total Ethernet
4
10/100/1000 Mbit/s
4
Interfaces
COM Total
1
RS-232/485
1
USB Total
1
Supported Protocols
Industrial Protocols
Modbus TCP, Modbus RTU, MQTT
Protocol Layer 3
VRRP, RIP V1/V2, OSPF, BGP
Managment Protocols
SNMPv1/v2c/v3, Telnet, Private MIB
Security Protocols
SSH, PPTP, L2TP, PPPoE
Digital Input
Total channels of digital input
1
Digital Output
Total channels of digital output
1
System Power Input
Input Voltage DC
12..48 V
Construction
Protection Level of Chassis
IP30
Dimensions and weight
Width
62 mm
Depth
135 mm
Height
160 mm
Operating Conditions
Operating Temperature
-30..70 °C
Humidity
10-95%
Standards and Certifications
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-6-2
Safety
EN 60950-1
Dimensions
Net Weight
1.6 kg
Gross Weight
2 kg
