TCC-120
MOXA
SKU: 02043400

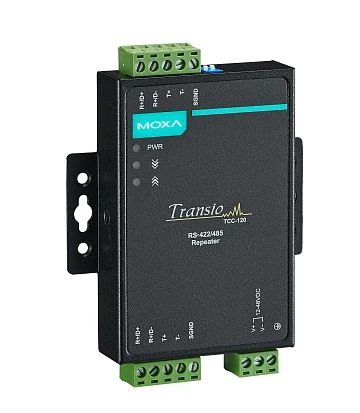

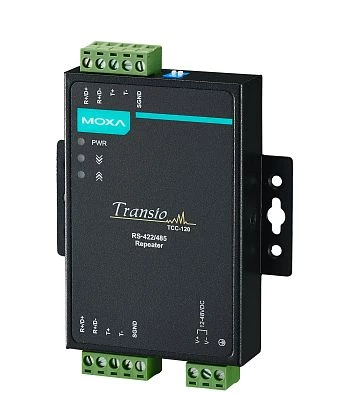

RS-422/485 Repeater, DIN-Rail Mounting Kit
Price on request
Available on order
Available on order
Interfaces
COM Total
2
RS-422/485
2
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-20..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
67 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class B
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 60950-1
Dimensions
Net Weight
0.25 kg
Gross Weight
0.34 kg
Interfaces
COM Total
2
RS-422/485
2
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-20..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
67 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class B
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 60950-1
Dimensions
Net Weight
0.25 kg
Gross Weight
0.34 kg
Interfaces
COM Total
2
RS-422/485
2
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-20..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
67 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class B
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 60950-1
Dimensions
Net Weight
0.25 kg
Gross Weight
0.34 kg
Interfaces
COM Total
2
RS-422/485
2
System Power Input
Input Voltage DC
12..48 V
Operating Conditions
Operating Temperature
-20..60 °C
Construction
Construction Chassis
Metal Chassis
Mounting Configuration
DIN-Rail mount, Wall
Dimensions and weight
Width
67 mm
Depth
22 mm
Height
100.4 mm
Standards and Certifications
Certifications
CE, FCC
EMI
FCC Part 15 Subpart B Class B
EMS
IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Safety
UL 60950-1
Dimensions
Net Weight
0.25 kg
Gross Weight
0.34 kg
